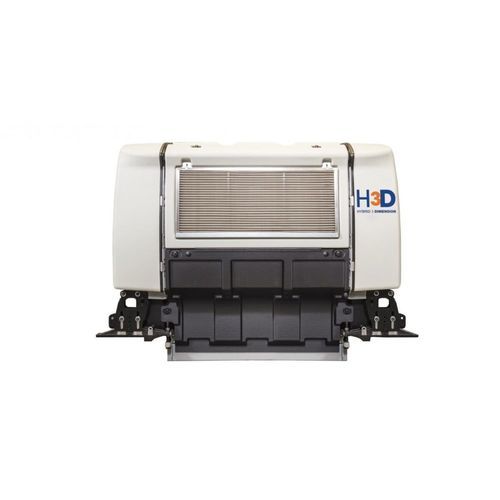

The BONAS H3D Range is a hybrid jacquard shedding system engineered for 3‑dimensional, multi‑layer and technical textile production. It combines flexible mechanical yarn handling with independent electronic drive and control to support complex weave structures and heavy yarn loads.

Benefits

• Flexible pulley system positioned under the jacquard for easy access and tailored to technical weaver requirements.
• Adjustable height wheel‑holders mounted on horizontal profiles for precise tuning of pulley position.
• Enhanced warp separation at crossings and increased adjustment range of yarn layers, including after levelling.
• Reliable selection ensured even without harness tension.
• Complete shedding systems can be supplied by BONAS to integrate with existing looms.

H3D features

• Hook capacity up to Si16-24-16128.
• Hook load up to 2 kg.
• Shedding positions: full 2‑ and 3‑position up to 330 mm; full 4‑position up to 430 mm.
• Independent controller for flexible integration and sequencing.
• Independent servo motor drive for precise motion control.
• Designed for all 3‑dimensional, multi‑layer and technical weaving applications.

Key USPs

• 3‑Dimensional weaving capability
• Engineered for technical textiles
• Hybrid BONAS jacquard architecture

Caractéristiques / spécifications techniques

• Series / product name: H3D Range (hybrid BONAS jacquard generation)
• Hook capacity: up to Si16-24-16128
• Hook load: up to 2 kg
• Shedding positions: full 2‑ and 3‑position up to 330 mm; full 4‑position up to 430 mm
• Drive & control: independent controller and independent servo motor drive
• Mechanical: flexible pulley system located under the jacquard with adjustable height wheel‑holders fixed to horizontal profiles
• Yarn handling: additional warp separation at crossing and increased height adjustment of yarn layers possible (including after levelling)
• Applications: intended for 3‑dimensional, multi‑layer and technical weaving applications
