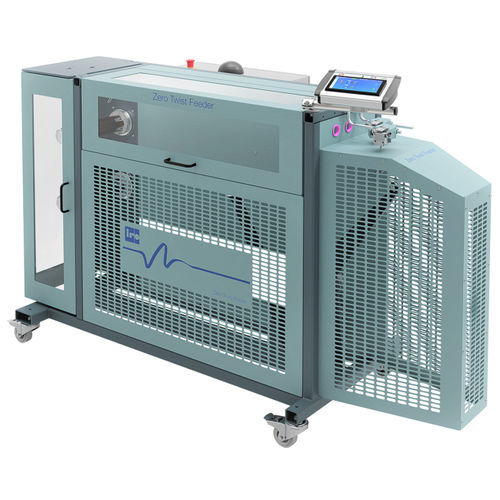

Pneumatic feeder IRO Zero Twist

yarnmotorizedelectronically controlled

Product description
The IRO Zero Twist Feeder (ZTF) supplies tape yarns or fibre tows to rapier weaving machines without introducing twist, maintaining constant yarn tension to prevent snarls and twisting during weft insertion.

Compatibility and versions
The ZTF is designed for rapier looms and can be fitted on new CAN-communication machines or retrofitted to older non-CAN machines via a dedicated conversion kit. It is available as a single-channel unit or as a 2C weft-mix version.

New features
Easy-to-handle pneumatic bobbin exchange system
User-friendly HMI interface

How it works
The bobbin is driven by a motor, enabling yarn delivery without twist at speeds matched to the weaving machine. A buffer arm synchronised with the rapier movement unwinds yarn at a continuous speed and supplies the precise length required for each weft insertion. A tension-and-sensor arm maintains constant yarn tension throughout the insertion cycle.

Advantages

• Delivers tape yarn without any twist
• Suitable for carbon fibre, glass fibre, aramid and plastic tapes
• Quick and easy bobbin exchange
• Compatible with mono-rapier and double-rapier weaving machines
• NEW Pneumatic bobbin exchange system for fast handling
• NEW Intuitive HMI for simplified setup and monitoring

Technical data (table)

• Speed: up to 850 m/min
• Drive: up to 250 rpm at 3.4 m (single channel)
• Machine width: up to 3.40 m
• Yarn / Tape width: 0.5 mm to 12 mm
• Monofilament: up to 1.5 mm
• Carbon fibre: 1.5k – 24k
• Other fibres: glass fibre, man-made fibres
• Bobbin tape width: 0.5 mm to 12 mm
• Bobbin max diameter: 250 mm
• Bobbin inner diameter: 76 mm
• Bobbin max length: 310 mm
• Bobbin max weight: 7 kg
• Rapier system: mono and double sided
• Versions: Single channel / 2C weft mix

Technical specifications

• Speed capacity: up to 850 m/min
• Drive capability: up to 250 rpm at 3.4 m (single channel)
• Max machine width: 3.40 m
• Handled yarn types: tape 0.5–12 mm, monofilament up to 1.5 mm, carbon fibre 1.5k–24k, glass and man-made fibres
• Bobbin: tape width 0.5–12 mm; max Ø 250 mm; inner Ø 76 mm; max length 310 mm; max weight 7 kg
• Rapier compatibility: mono and double-sided systems
• Available versions: single channel or 2C weft mix
• Main features: pneumatic bobbin exchange; user-friendly HMI interface
