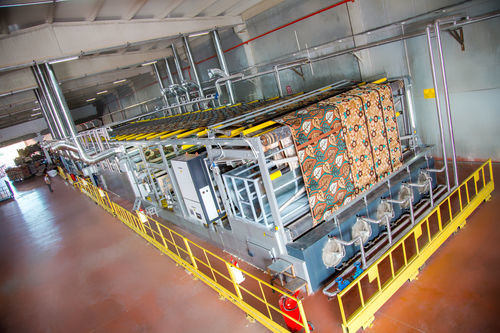

Adhesive coating and laminating machine

for textiles

Introduction
BEJIMAC back sizing machine is designed for high-efficiency, reliable back coating of woven carpets. It combines precise adhesive application, thorough cleaning systems and full automation to ensure consistent production quality and reduced operator workload.

Key benefits

• Handles woven carpets up to maximum production width
• Consistent quality through full automatic control, reducing operator intervention
• Complete video surveillance and camera control for operator and office monitoring
• Automatic tension regulation adaptable to carpet type
• Integrated recipe management for repeatable process settings

Process & production features

• Maximum speed: 14 m/min
• High-efficiency cleaning system reducing dust in the latex area
• Weft straightener to correct weaving distortions
• Shrinking system available for bulk acrylic fibers
• BEJIMAC exclusive pile passage ensuring no residual moisture in the carpet
• Application of two glue types (simultaneously or separately) with kissing roller
• Optimised material flow with compact feeding and delivery layout

Automation, cleaning & maintenance

• Full automatic system including automatic cleaning of pipes and tanks
• Automatic glue preparation to ensure stable glue quality
• Integrated systems for easy cleaning of the sizing area
• Automatic width detection and lateral guiding

Modularity & line integration
The BEJIMAC modular concept allows operation as a standalone machine (including cleaning) or as part of a complete line including cleaning, back sizing and shearing.

Additional note
Continuous technological developments and an exclusive BEJIMAC process deliver thoroughly dry carpets and improved production efficiency.

Technical specifications

• Product type: Back coating / back sizing machine for woven carpets
• Maximum operating speed: 14 m/min
• Automatic carpet tension regulation
• Automatic width detection and lateral guiding
• Full automatic glue preparation and application (2 glue types possible; kissing roller)
• Automatic cleaning of pipes and tanks
• High-efficiency cleaning to reduce latex-area dust
• Weft straightener included
• Shrinking system available for bulk acrylic fibers
• Complete video surveillance and camera control for operators and offices
• Modular concept: standalone machine or integrated complete line (cleaning, back sizing, shearing)
