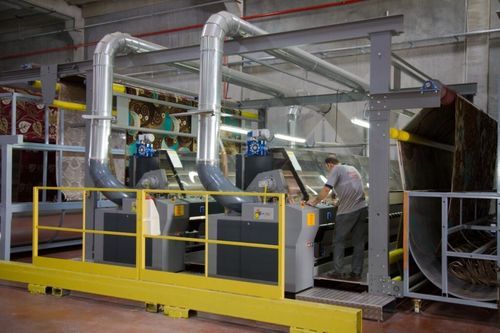

Fabric shearing machine ATSH

Overview
We supply shearing machines with 1 to 3 heads according to production needs. The ATSH shearing machine is suitable for woven carpets, tufted carpets and artificial grass, delivering consistent finish and adaptable operation.

Main features

• Handles carpets up to maximum production width; up to 20 m/min for woven carpets, higher speeds for tufted carpets.
• Full automatic system reduces operator interventions and ensures consistent quality and output.
• Shearing head protection via metal detector and seam detection systems.
• Automatic tension regulation for all carpet constructions.
• Electrically driven transparent guard for operator safety and visibility.

Developments and technology
The ATSH, developed by BEJIMAC & Vandewiele, is an autonomous shearing machine able to automatically adjust shearing height — a task previously reliant on experienced operators. The machine performs continuous height checks before and after shearing and applies proprietary algorithms to determine corrections. Hydraulics have been replaced by servomotors for faster and more accurate height setting. Ongoing improvements have been integrated into the system.

Practical points

• Compatible with different carpet backing constructions.
• No striping on finished carpets.
• Suitable for various carpet fibres.
• Finer finish option with 300 mm diameter tool, up to 600 RPM.
• No moiré effects.
• Delivers clean, finished carpets ready for further processing.

Ergonomics

• Quality programming for repeatable results.
• Control of each head from any touchscreen station.
• Parameter history logging for process traceability.
• Synchronization capability with other BEJIMAC machines in the production line.

Maintenance

• Maintenance recommendations and schedules provided.
• Easy access for cleaning the shearing head.
• Electric grinding equipment included for tool upkeep.

Caractéristiques / spécifications techniques

• Type: Shearing machine for carpets (suitable for woven, tufted and artificial grass).
• Heads: 1 to 3 shearing heads (depending on production capacity).
• Maximum speed: up to 20 m/min for woven carpets; higher speeds possible for tufted carpets.
• Shearing tool: 300 mm diameter option, up to 600 RPM (for finer appearance).
• Auto height control: Autonomous shearing height adjustment (ATSH) with continuous height checks before and after shearing and algorithmic adjustment.
• Actuation: Servomotors for fast and accurate height setting (hydraulics replaced by servomotors).
• Protection: Metal detector and seam detection protecting the shearing head; electrically driven transparent protection guard.
• Tension control: Automatic tension regulation for all carpet types.
• Quality control: Full automatic system reduces operator intervention and increases consistency.
• Ergonomics & HMI: Touchscreen control per head, quality programming, parameter history, synchronization capability.
• Maintenance features: Easy head cleaning and electric grinding equipment.
