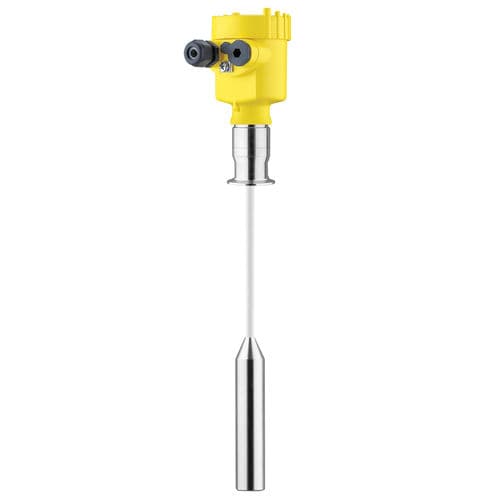

Capacitive cable probe for continuous level measurement
Cable probe, fully PTFE insulated
Application area
For use in non-abrasive liquids and bulk solids. The cable probe is fully insulated. A full/empty adjustment is necessary for setup.
The VEGACAL 66 is a level sensor for use in non-abrasive liquids and bulk solids. The cable probe is fully insulated. The proven mechanical construction offers high functional safety.
Your benefit
Savings through simple mounting and setup
Long lifetime and low maintenance requirement through robust mechanical construction
Maximum utilization of the vessel because measurement over the complete probe length
Measuring range - Distance
32 m
Process temperature
-50 ... 150 °C
Process pressure
-1 ... 40 bar
Version
PTFE insulated cable ø 8 mm with gravity weight
PTFE-insulated cable ø 8 mm with gravity weight and screening tube
Materials, wetted parts
PTFE
316L
Steel C22.8
Threaded connection
≥ G1, ≥ 1 NPT
Flange connection
≥ DN50, ≥ 2"
Seal material
no media contact
Housing material
Plastic
Aluminium
Stainless steel (precision casting)
Stainless steel (electropolished)
Protection rating
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
Output
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART - two-wire
Ambient temperature
-40 ... 80 °C
Explosion protection
Intrinsic safety Ex ia
Pressure-tight encapsulation Ex d
Protection through housing St Ex
