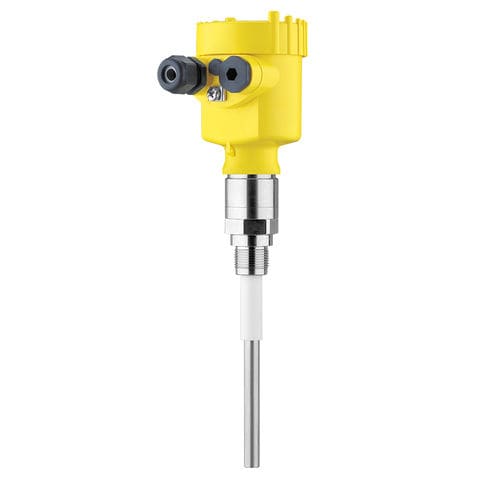

Capacitive level sensor VEGACAL 62

for liquidsbulk solidsHART

Capacitive rod probe for continuous level measurement Rod probe, partly PTFE insulated Application area For measurement of bulk solids and non-conductive liquids such as oil. A full/empty adjustment is necessary for setup. The VEGACAL 62 is a level sensor for continuous level measurement in all industries. The partly insulated probe is designed for measurement of bulk solids and can be also used in non-conductive liquids such as e.g. oil. The proven construction offers high functional safety. Your benefit High flexibility through shortenable probe Long lifetime and low maintenance requirement through robust mechanical construction Maximum utilization of the vessel because measurement over the complete probe length Measuring range - Distance 6 m Process temperature -50 ... 200 °C Process pressure -1 ... 64 bar Version with screening tube PN1 with concentric tube Standard Materials, wetted parts PTFE 316L Alloy 400 (2.4360) PEEK Steel C22.8 Threaded connection ≥ G½, ≥ ½ NPT Flange connection ≥ DN25, ≥ 1" Seal material no media contact Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Profibus PA Foundation Fieldbus 4 … 20 mA/HART - two-wire Ambient temperature -40 ... 80 °C
