With ceramic measuring cell
Application area
Cost-effective design with very small installation dimensions and threaded process fitting.

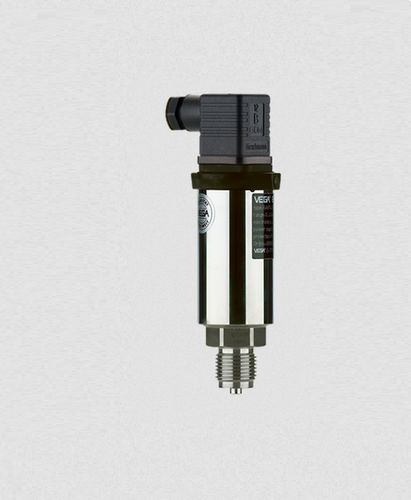

The VEGABAR S 14 pressure transmitter can be used universally for measurement of gases, vapours and liquids. The small pressure transmitter offers maximum reliability and operational safety. The VEGABAR S 14 is an economical solution for a number of applications in all industries.
Your benefit
Low maintenance costs thanks to wear-free ceramic measuring cell
High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell
Price-favourable version with small mounting dimensions
VEGABAR S 14 is a pressure transmitter for measurement of gauge pressure, absolute pressure or vacuum. It can be used to measure gases, vapours and liquids. The main application areas are machine building, plant and facilities engineering as well as simple process level measurements of free flowing liquids. It can be teamed up with VEGAMET 381 which can provide power, a calibrated output, a display, 2 relay switch points and fault relay.
Technical specifications
Measuring range - Pressure
0 ... 25 bar
Process temperature
-20 ... 100 °C
Process pressure
0 ... 25 bar
