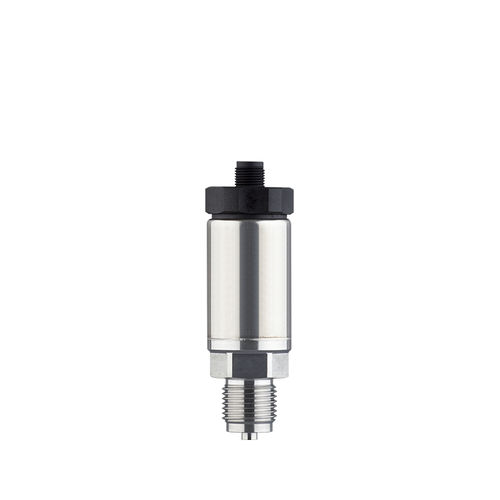

Relative pressure transmitter VEGABAR 19
4-20 mAthreadedfor gas

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Output
4-20 mA
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP67, IP66
Other characteristics
economical
Process temperature

Max.: 100 °C (212 °F)

Min.: -40 °C (-40 °F)

Pressure range

Max.: 100 bar (1,450.38 psi)

Min.: 0 bar (0 psi)

Description

Pressure transmitter With metallic measuring cell, basic version Application area 4 ... 20 mA, thread ½" VEGABAR 19 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids. VEGABAR 19 is an economical solution for a variety of applications in all industrial sectors. Your benefit Price-favourable version with small mounting dimensions Universally applicable due to fully welded metallic measuring cell Technical specifications Measuring range - Pressure 0 ... 100 bar Process temperature -40 ... 100 °C Accuracy 0,5 % Materials, wetted parts 316L Threaded connection ≥ G½, ≥ ½ NPT Seal material Seal material Protection rating IP66/IP67 Output 4 … 20 mA Ambient temperature -40 ... 70 °C
