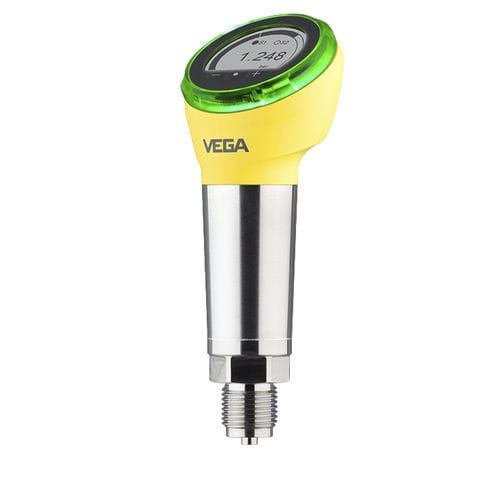

Relative pressure transmitter VEGABAR 39
4-20 mAthreadedstainless steel

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Pressure type
4-20 mA
stainless steel
Protection level
IP67, ATEX, IP66
for pharmaceutical applications, for the food industry
Other characteristics
with digital display
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Process temperature

Max.: 130 °C
(266 °F)

Min.: -40 °C
(-40 °F)


Pressure sensor with switching function With metallic measuring cell Application area From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° switching status display, on-site display and 3-button operation VEGABAR 39 is a universal pressure transmitter with a metallic measuring cell for measuring gases, vapours and liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° switching status indication. Your benefit Coloured 360° switching status display, display and on-site operation with VDMA menu structure Universally applicable due to fully welded metallic measuring cell Easy integration into control systems through IO-Link communication Measuring range - Pressure -1 ... 1000 bar Process temperature -40 ... 130 °C Accuracy 0.3 % Materials, wetted parts 316L Threaded connection ≥ G½, ≥ ½ NPT Hygenic fittings Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25 Housing material Plastic Protection rating IP66/IP67 Output 4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link Ambient temperature -40 ... 70 °C
