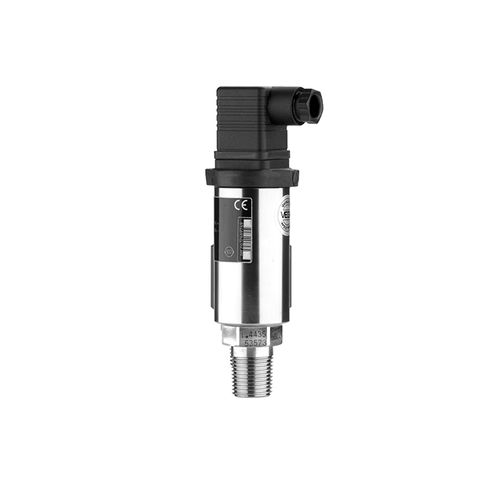

Relative pressure transmitter VEGABAR 14
vacuumceramic4-20 mA

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, vacuum
Technology
ceramic
Output
4-20 mA
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP65, IP67, IP68
Applications
process
Other characteristics
economical
Process temperature

Min.: -40 °C (-40 °F)

Max.: 100 °C (212 °F)

Pressure range

Min.: -1 bar (-14.5 psi)

Max.: 60 bar (870.23 psi)

Description

Process pressure transmitter with ceramic measuring cell With ceramic measuring cell Application area The small pressure transmitter VEGABAR 14 is a cost-effective solution with the advantages of a ceramic measuring cell. The VEGABAR 14 pressure transmitter can be used universally for measurement of gases, vapours and liquids. The small pressure transmitter offers maximum reliability and operational safety. The VEGABAR 14 is an economical solution for a number of applications in all industries. Your benefit Low maintenance costs thanks to wear-free ceramic measuring cell High plant availability through maximum overload and vacuum resistance of the ceramic measuring cell Price-favourable version with small mounting dimensions Measuring range - Distance - Measuring range - Pressure -1 ... 60 bar Process temperature -40 ... 100 °C Process pressure -1 ... 60 bar Accuracy 0.3 % Materials, wetted parts PVDF 316L Duplex (1.4462) Threaded connection ≥ G½, ≥ ½ NPT Seal material EPDM FKM FFKM Protection rating IP67 IP65 IP68 (0,2 bar) IP68 (0,5 bar) Output 4 … 20 mA Ambient temperature -40 ... 80 °C
