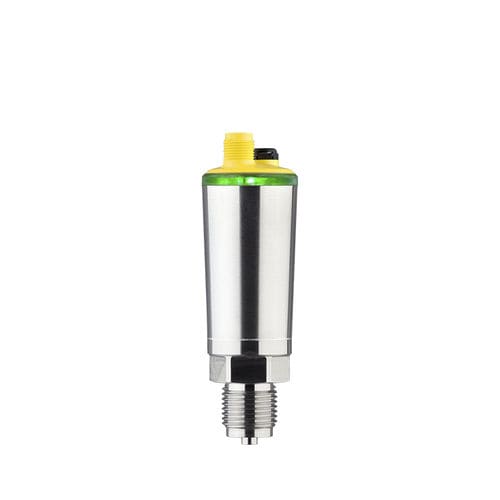

Relative pressure transmitter VEGABAR 29
4-20 mAthreadedfor gas

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Output
4-20 mA
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP65, ATEX, IP68, IP69
Process temperature

Min.: -40 °C (-40 °F)

Max.: 130 °C (266 °F)

Pressure range

Min.: -1 bar (-14.5 psi)

Max.: 1,000 bar (14,503.77 psi)

Description

Pressure sensor with switching function With metallic measuring cell Application area From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° switching status display VEGABAR 29 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. Your benefit Universally applicable due to fully welded metallic measuring cell Coloured 360° switching status display, adjustable Easy integration into control systems through IO-Link communication Measuring range - Pressure -1 ... 1000 bar Process temperature -40 ... 130 °C Accuracy 0.3 % Materials, wetted parts 316L Threaded connection ≥ G½, ≥ ½ NPT Hygenic fittings Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ 1½", ≥ DN40 - DIN 11851 Slotted nut ≥ DN25 - DIN 11851 SMS 1145 DN51 SMS DN38 Hygienic fittings ≥ DN25 - DIN11864-1-A Hygienic fittings ≥ DN40 - DIN11864-1-A Varivent N50-40 SMS DN25 Ingold connection PN10 Varivent F25 Protection rating IP65 IP68 (0,5 bar)/IP69 Output 4 … 20 mA Three-wire (PNP/NPN, 4 … 20 mA) IO-Link Ambient temperature -40 ... 70 °C Scope ATEX / Europe IEC / worldwide Explosion protection Intrinsic safety Ex ia Foodstuffs/Pharma 3A EHEDG FDA EG1935/2004 Ship approval DNV GL Adjustment PC, PACTware and DTM Smartphone / Tablet / PC via Bluetooth Indication 360° switching status indication
