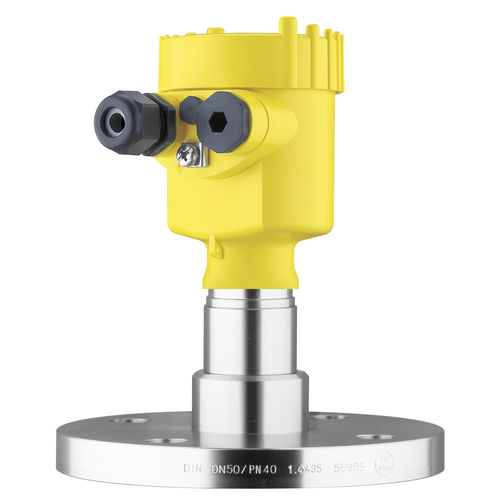

Relative pressure transmitter VEGABAR 83
vacuum4-20 mAHART

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, vacuum
Output
4-20 mA, HART, Modbus, Profibus
Mounting
threaded, flange
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP67, ATEX, IP68, IP66, IP69
Applications
for pharmaceutical applications, for the food industry, process
Other characteristics
two-wire, with aluminum housing
Pressure range

Min.: -1 bar
(-14.5 psi)

Max.: 1,000 bar
(14,503.77 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 200 °C
(392 °F)

Description

Pressure transmitter with metallic measuring cell With metallic measuring cell, for high pressures Application area For measurement of liquids and viscous products with high process pressure. The VEGABAR 83 is a pressure transmitter for pressure measurement of gases, vapours and liquids in all industries. The VEGABAR 83 offers special advantages in applications with high pressures. The simple connection of VEGABAR series 80 sensors as electronic differential pressure opens new possibilities for the measurement of differential pressures. Your benefit Maximum dependability and safety through proven technology High reliability through vacuum resistant version Universal use due to welded measuring cell The pressure transmitter VEGABAR 83 is ideal for level and pressure measurement of liquids and viscous products with high process pressure. With its metallic measuring cell, the instrument delivers excellent measurement accuracy, even under a vacuum. This pressure transmitter is the first choice for process pressure or level measurement in processes with high pressure, e.g. for circuit pressure measurement in hydraulic pumps pipeline pressure measurement bitumen level measurerment in asphalt mixing plants storage tank level measurement, e.g. for milk in dairies Measuring range - Pressure -1 ... 1000 bar Process temperature -40 ... 200 °C Process pressure -1 ... 1000 bar Accuracy 0.075 % Materials, wetted parts 316L Alloy C22 (2.4602) 316Ti (1.4571) Alloy C4 (2.4610) Threaded connection ≥ G½, ≥ ½ NPT Flange connection ≥ DN25, ≥ 1" Hygenic fittings Clamp ≥ 1" - DIN32676, ISO2852 Slotted nut ≥ DN25 - DIN 11851 Varivent ≥ DN25
