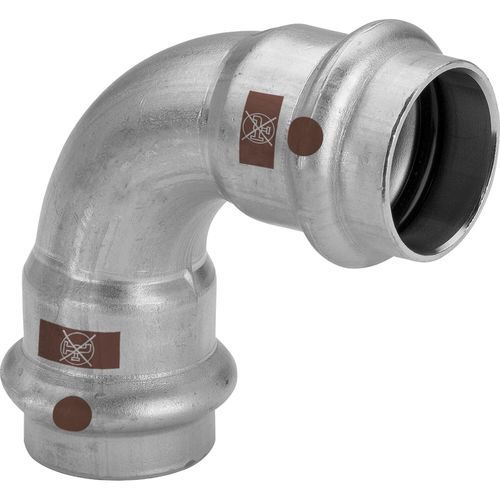

Hydraulic connector Temponox

cylindricalplug-instainless steel

Flow-​optimised press connector system with press connectors made of stainless steel 1.4301 and pipes made of stainless steel 1.4520. Press connectors for protecting the sealing element equipped with cylindrical pipe guide. Press connectors from d76.1 with stainless steel cutting ring to ensure the mechanical strength of the connection. For protection pipes are equipped with pipe plugs. The pressing force is located before and behind the sealing element seat. Suitable for concealed and pre-​wall installations of riser pipes and floor installations. Marking Manufacturer, pipe dimension, batch, brown dot on press end, symbol »Not approved for potable water installations«, brown line on the pipes, brown pipe plug, detachable brown label as press indicator from d76.1 The sealing materials of the press connector system are subject to thermal ageing, which depends on the media temperature and the operating time. The higher the media temperature, the faster the thermal ageing of the sealing material progresses. In the case of special operating conditions, e.g. industrial heat recovery systems, it is necessary to compare the specifications of the appliance manufacturer with the specifications of the press connector system. Before using the press connector system beyond the areas of application described or if in doubt about the correct selection of material, please contact Viega. Tools The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. Viega recommends the use of Viega press tools for pressing Viega press connectors. Viega press tools have to be regularly maintained by authorised service partners.
