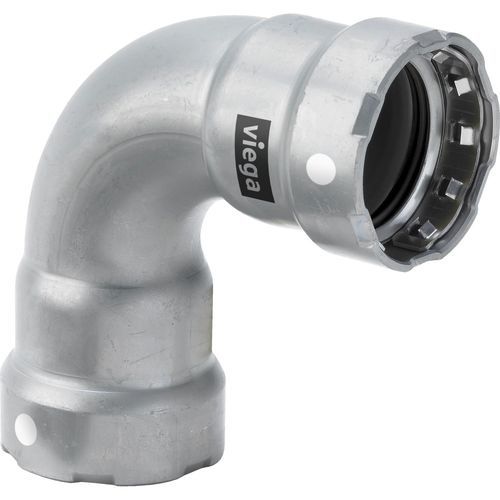

Hydraulic fitting Megapress S

for gascrimpelbow

Flow-​optimised press connector system made of non-​alloy steel 1.0308 with an externally galvanised zinc-​nickel coating for black, galvanised, industrially painted and powder-​coated steel pipes. Press connectors with stainless steel cutting ring to ensure the mechanical strength of the connection. Suitable for concealed and pre-​wall installations of riser pipes and floor installations. Marking Manufacturer, pipe dimension, batch, white dot on press end, black rectangle with symbol »Not approved for potable water installations«, detachable white label as press indicator Sealing elements FKM (fluorocarbon rubber), matt black, pre-​assembled Dimensions D⅜–4, size availability in accordance with the national regulations Tools The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. The Pressgun Press Booster is required for manufacturing Megapress S XL press connections. Viega press tools have to be regularly maintained by authorised service partners. Areas of application Industrial and plant engineering Local and district heat systems as per AGFW FW 524 (after entry into the building, ≤ DN50) Closed cooling and heating systems Compressed air systems Fire extinguishing and sprinkler systems (the required minimum and maximum wall thickness have to be observed) Systems for technical gases (request required)
