Flow-optimised press connector system with press connectors made of stainless steel 1.4401 and pipes from stainless steel 1.4401 and 1.4521. Press connectors for protecting the sealing element equipped with cylindrical pipe guide. Press connectors from d64.0 with stainless steel cutting ring to ensure the mechanical strength of the connection. For protection pipes are equipped with pipe plugs. The pressing force is located before and behind the sealing element seat. Suitable for concealed and pre-wall installations of riser pipes and floor installations.
Marking
Manufacturer, pipe dimension, batch, green dot on press end, yellow pipe plug for 1.4401, green pipe plug for 1.4521, detachable orange label as press indicator from d64.0

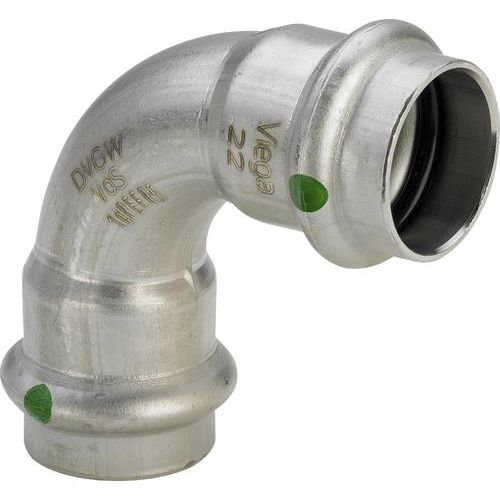

Press connector with SC‑Contur
Inadvertently unpressed connections become visibly leaky when the system is filled.
Viega guarantees the detection of unpressed connections in the following pressure ranges:
Sealing elements
EPDM (ethylene propylene diene rubber), black, pre-assembled
Tools
The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorised service partners.
Areas of application
Potable water
Heating/radiator connection
Rainwater
Compressed air systems
Agriculture
Industrial applications
