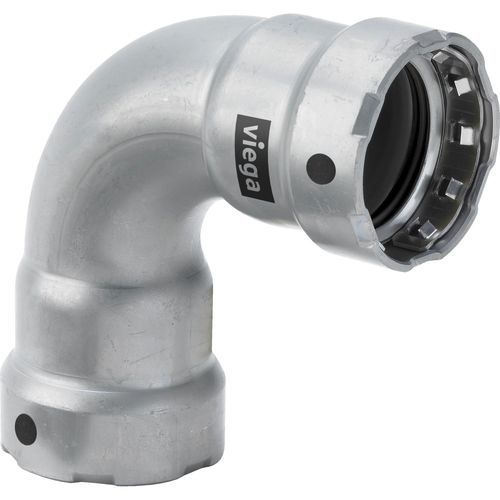

Hydraulic fitting Megapress

for gascutting ringcrimp

Flow-​optimised press connector system made of non-​alloy steel 1.0308 with an externally galvanised zinc-​nickel coating for black, galvanised, industrially painted and powder-​coated steel pipes. Press connectors with stainless steel cutting ring to ensure the mechanical strength of the connection. Suitable for concealed and pre-​wall installations of riser pipes and floor installations. Marking Manufacturer, pipe dimension, batch, black dot on press end, black rectangle with symbol »Not approved for potable water installations«, orange/black detachable label as press indicator Sealing elements EPDM (ethylene propylene diene rubber), profile sealing element , black, pre-​assembled Dimensions D⅜–2, external Ø 38.0(DN32), external Ø 44.5 (DN40), external Ø 57.0 (DN50), size availability in accordance with the national regulations Tools The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorised service partners. Areas of application Industrial and plant engineering Closed cooling and heating systems Compressed air systems Fire extinguishing and sprinkler systems (the required minimum and maximum wall thickness have to be observed) Systems for technical gases (request required) Note Use of the system for areas of application and media other than those described must be agreed in consultation with Viega! Detailed information about applications, restrictions and national standards and directives can be found in the product information,
