Gate valve M0 serieswith handwheelfor waterpetroleum
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Media
- for water, petroleum
- Body
- threaded
- Material
- brass
- Other characteristics
- ISO
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
120 °C
(248 °F)
Description

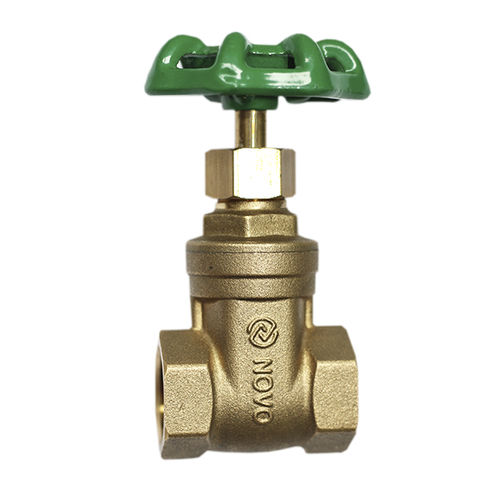

Brass gate valve Novo
• - Non rising stem, solid wedge, screwed ends
• - Used for water, petroleum
• - Green color handwheel
• - BS 21 / ISO 228-1-2000 threads standard
• - Max working pressure: 16 bar ~ 16 kg/cm²
• - Max working temperature: 120°C
