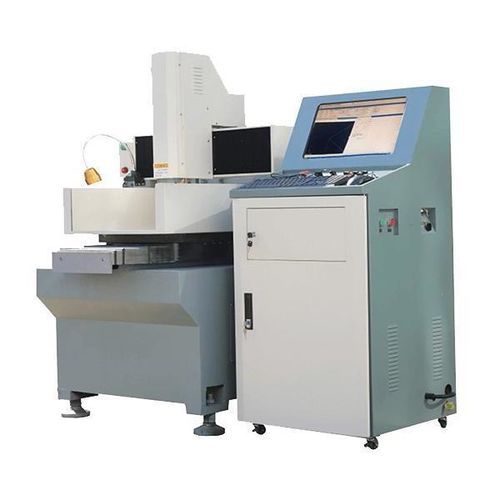

Spindle engraving machine

plasticmetalwood

Overview This industrial CNC engraving machine is built for precision machining with a working stroke of 400x400x110mm and a 480x480mm workbench. Positioning accuracy is 0.01 mm with repeatability of 0.008 mm. The spindle delivers 2.2 kW power with stepless speed 0–24,000 rpm; spindle-to-table distance is adjustable from 80 to 190 mm. Rapid traverse is 10 m/min and maximum cutting feed is 8 m/min. Working voltage: single-phase 220 V/50 Hz. Driving system: Servo. Machine weight approx. 900 kg. Optional configurations: 3.5-axis (rotating shaft) or double Z axis.

Cutting Applications

• Jewelry industry — precision carving of jewelry and prototypes, suitable for complex patterns.
• Deburring — removal of small burrs and finishing on metal and other materials.
• Advertising and signage — cutting and engraving on wood, plastic and metal for signs, badges and logos.
• Mold manufacturing — producing detailed metal and plastic molds with high accuracy.
• Crafts and decorative items — making souvenirs, carved panels and detailed craft components.

Equipment Advantages

• CNC system: uses the Weihong card CNC system for stable control and G-code compatibility.
• Capable of engraving on quenched/hardened materials as well as soft materials.
• Supports micro-sized cutting tools for high-precision finishing.
• Open G-code interface: compatible with common domestic and international CAM/CAD software.

Frequently Asked Questions

• What materials can it process? — Wood, plastics, various metals and quenched/hardened materials.
• Is it compatible with standard programming software? — Yes; accepts international standard G-code commands.
• How is operation and maintenance? — Designed for straightforward operation; includes manual; routine cleaning and periodic checks required.
• Warranty options? — Typically 1 year free warranty; extended paid warranty options available.
• What about durability? — Built with industrial components for long service life with proper maintenance.
• Can it meet international standards? — Yes; electrical and safety configurations can be adapted to customer requirements.

Technical Specification

• X/Y/Z positioning precision: 0.01 mm
• X/Y/Z repeated positioning precision: 0.008 mm
• Workbench planeness: 50.02 mm
• X–Y perpendicularity: 0.015 / 400 mm
• Working stroke (X x Y x Z): 400 x 400 x 110 mm
• Workbench dimensions: 480 x 480 mm
• Spindle nose to table distance: 80–190 mm
• Rapid moving speed: 10 m/min
• Maximum cutting feed speed: 8 m/min
• Spindle motor output: 2.2 kW
• Spindle speed (stepless): 0–24000 rpm
• Working voltage: Single-phase 220 V / 50 Hz
• Driving system: Servo
• Machine weight: ~900 kg
• Electric cabinet dimensions: 600 x 590 x 1360 mm
• Overall dimensions (W x D x H): 910 x 1010 x 1560 mm
• Optional: 3.5-axis (rotating shaft), double Z axis
