Brushless motor ECD2238
DC24 V12 V

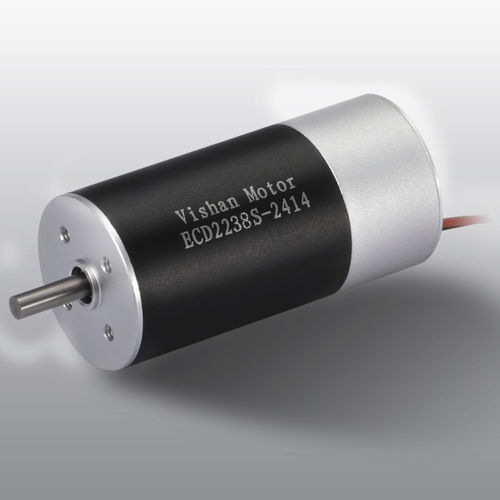

Brushless motor - ECD2238 - Vishan Motor - DC / 24 V / 12 V
Brushless motor - ECD2238 - Vishan Motor - DC / 24 V / 12 V
Brushless motor - ECD2238 - Vishan Motor - DC / 24 V / 12 V - image - 2
Add to favorites
Compare this product
Go to the Vishan Motor website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V, 18 V
Configuration
slotless, with brake, small
Number of poles
single-pole
Other characteristics
high-efficiency, UL certified, with speed controller
Intensity

0.57 A, 0.75 A, 1.13 A

Torque

0.006 Nm
(0.004425 ft.lb)

Rotational speed

15,497 rpm, 15,660 rpm, 15,804 rpm
(97,370.5227 rad.min-1, 98,394.6819 rad.min-1, 99,299.4606 rad.min-1)

Diameter

22 mm
(0.87 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Function:On&Off/Direction/Speed cpntrol/Brake With or without Hall sensor Performance: Customized in the continuous operating range Ball bearing: Preload Flange: Standard frange front&back/customize the frange Shaft: Length/Diameter/Cut face/double shaft/hollow shaft Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE Applications: Power Tools Pumps Robot Fan&Blower Medical Equipment
