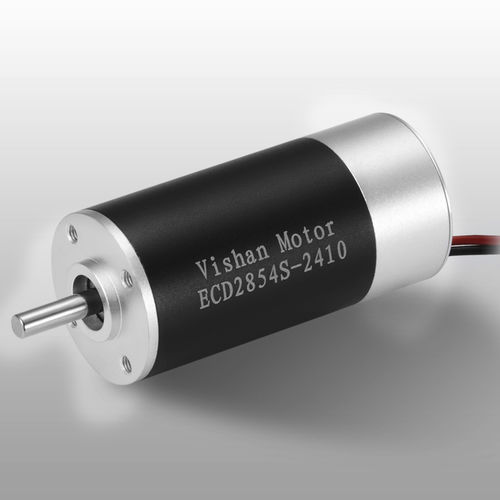

DC motor ECD2854S seriesbrushless24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 12 V
- Configuration
- slotless, with brake, small
- Number of poles
- single-pole
- Other characteristics
- high-efficiency, high-torque, low-noise, high-power, with speed controller
- Power
13 W
(0.018 hp)- Intensity
Min.: 76 mA
Max.: 5,380 mA
- Torque
0.015 Nm, 0.018 Nm, 0.0781 Nm, 0.0857 Nm
(0.0111 ft.lb, 0.0133 ft.lb, 0.0576 ft.lb, 0.0632 ft.lb)- Rotational speed
Min.: 5,157 rpm
(32,402.39 rad.min-1)Max.: 25,000 rpm
(157,079.63 rad.min-1)- Diameter
28 mm
(1.1 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 100 °C
(212 °F)
Description
With more and more requirments of the Brush motor replacement, downsize and lightweight design, reliable quality needed and specific functions customization...etc, the controller with Brushless DC motor integrated solution become important and popular.
Vishan ECD series are developed to feed such requirements, the high quality and miniaturized controller are very important and defiant, with special structure of the motor inside to place the controllers well and delivery good heat dissipation, Our ECD series can supply big power output, good security and high quality.
Configuration:
Function: On&Off/Direction/Speed control/Brake Speed closed&open-loop Control/Speed feedback
Performance: Customized in the continuous operating range
Ball bearing: Preload
Flange: Standard frange front&back/customize the frange
Shaft: Length/Diameter/Cut face
Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE
Connector:JST/MOLEX/TE
