Brushless motor ECD2459S
DC24 V12 V

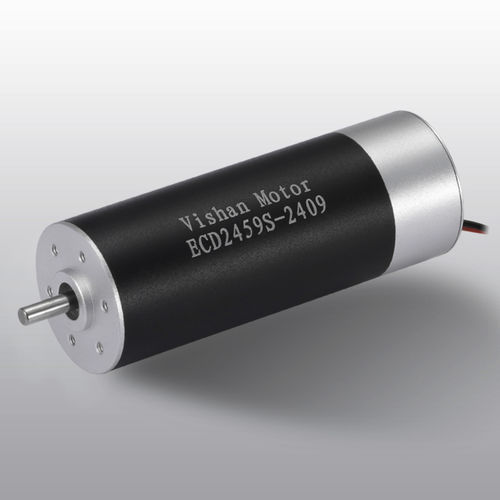

Brushless motor - ECD2459S - Vishan Motor - DC / 24 V / 12 V
Brushless motor - ECD2459S - Vishan Motor - DC / 24 V / 12 V
Add to favorites
Compare this product
Go to the Vishan Motor website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V
Configuration
slotless, with brake, small
Number of poles
single-pole
Other characteristics
high-efficiency, with speed controller
Intensity

0.75 A, 1.07 A

Torque

0.014 Nm, 0.02 Nm
(0.010326 ft.lb, 0.014751 ft.lb)

Rotational speed

6,597 rpm, 6,958 rpm
(41,450.1735 rad.min-1, 43,718.4034 rad.min-1)

Diameter

24 mm
(0.94 in)

Operating temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

With more and more requirments of the Brush motor replacement, downsize and lightweight design, reliable quality needed and specific functions customization...etc, the controller with Brushless DC motor integrated solution become important and popular. Vishan ECD series are developed to feed such requirements, the high quality and miniaturized controller are very important and defiant, with special structure of the motor inside to place the controllers well and delivery good heat dissipation, Our ECD series can supply big power output, good security and high quality. Configuration: Function: On&Off/Direction/Speed control/Brake Speed closed&open-loop Control/Speed feedback Performance: Customized in the continuous operating range Ball bearing: Preload Flange: Standard frange front&back/customize the frange Shaft: Length/Diameter/Cut face Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE Connector:JST/MOLEX/TE
