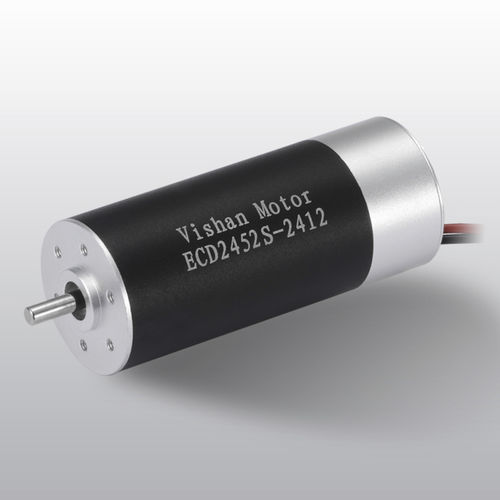

DC motor ECD2452S seriesbrushless24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 24 V, 12 V
- Configuration
- slotless, with brake, small
- Number of poles
- single-pole
- Other characteristics
- high-efficiency, high-torque, low-noise, high-power, with speed controller
- Power
10 W
(0.014 hp)- Intensity
Max.: 5,580 mA
Min.: 68 mA
- Torque
0.014 Nm, 0.0852 Nm, 0.087 Nm
(0.0103 ft.lb, 0.0628 ft.lb, 0.0642 ft.lb)- Rotational speed
Max.: 30,000 rpm
(188,495.56 rad.min-1)Min.: 5,834 rpm
(36,656.1 rad.min-1)- Diameter
24 mm
(0.94 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -40 °C
(-40 °F)
Description
With more and more requirments of the Brush motor replacement, downsize and lightweight design, reliable quality needed and specific functions customization...etc, the controller with Brushless DC motor integrated solution become important and popular.
Vishan ECD series are developed to feed such requirements, the high quality and miniaturized controller are very important and defiant, with special structure of the motor inside to place the controllers well and delivery good heat dissipation, Our ECD series can supply big power output, good security and high quality
Configuration:
Function: On&Off/Direction/Speed control/Brake Speed closed&open-loop Control/Speed feedback
Performance: Customized in the continuous operating range
Ball bearing: Preload
Flange: Standard frange front&back/customize the frange
Shaft: Length/Diameter/Cut face
Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE
Connector:JST/MOLEX/TE
