Brushless motor ECD3683S series
DC24 V12 V

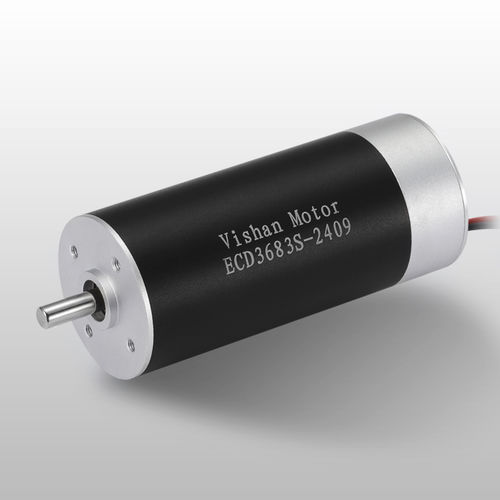

Brushless motor - ECD3683S series - Vishan Motor - DC / 24 V / 12 V
Brushless motor - ECD3683S series - Vishan Motor - DC / 24 V / 12 V
Add to favorites
Compare this product
Go to the Vishan Motor website for more information

Characteristics

Type
brushless, DC
Voltage
24 V, 12 V
Configuration
slotless, with brake, small
Number of poles
single-pole
Other characteristics
high-efficiency, with speed controller
Intensity

1.53 A, 3.04 A

Torque

0.1 Nm
(0.073756 ft.lb)

Rotational speed

2,294 rpm, 2,304 rpm
(14,413.6271 rad.min-1, 14,476.4589 rad.min-1)

Diameter

36 mm
(1.42 in)

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

With more and more requirments of the Brush motor replacement, downsize and lightweight design, reliable quality needed and specific functions customization...etc, the controller with Brushless DC motor integrated solution become important and popular. Vishan ECD series are developed to feed such requirements, the high quality and miniaturized controller are very important and defiant, with special structure of the motor inside to place the controllers well and delivery good heat dissipation, Our ECD series can supply big power output, good security and high quality. Configuration: • Function: On&Off/Direction/Speed control/Brake Speed closed&open-loop Control/Speed feedback • Performance: Customized in the continuous operating range • Ball bearing: Preload • Flange: Standard frange front&back/customize the frange • Shaft: Length/Diameter/Cut face • Leadwire: PVC/Silicon/Teflon/UL No/Dimension/length Connector: JST/MOLEX/TE • Connector:JST/MOLEX/TE
