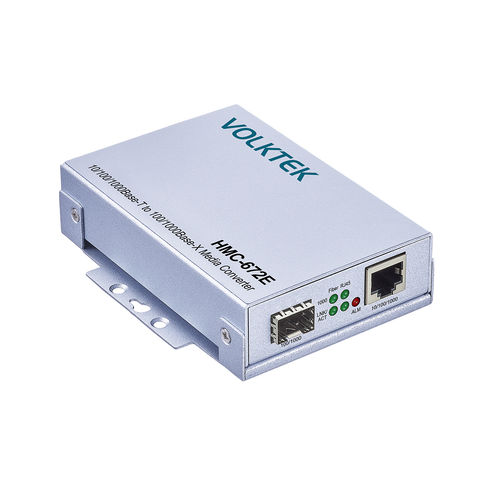

Media converter HMC-672E series

protocolsignalgigabit Ethernet

Product Highlights10/100/1000 RJ45 to 100FX/1000Base-X ConverterAuto MDI/MDI-X (medium dependent interface / MDI crossover)Auto-negotiation (N Way protocol) support on RJ45Link fault signaling and LEDs for at-a-glance device statusOperating temperature -10°C to 60°C (14°F~140°F)OverviewHMC-672E is a 10/100/1000 RJ45 to 100FX/1000Base-X Converter Copper to the Fiber media converter. It's an inexpensive and minimal solution with automatic MDI/MDI-X and Auto-negotiation, NWay support on RJ-45. The device uses LED signaling to inform users of its transmission activity. The converter is completely transparent when connected, meaning that network performance remains unchanged. The device is available in single- and multi-mode fiber with data transmission delivery at distances of 500m/10/40/50/70km depending on request. For added flexibility, this media converter is available with SC, and SFP slot for SFP module. This media converter operates between temperatures of -10°C~60°C (14°F~140°F). The device has a standard size to fit on an in-rack solution with multiple media converters.FeaturesRugged and Robust Design: Built in a rugged and durable housing. Enclosed in IP30-grade casing, the media converter provides superior protection from severe temperatures extending from -10°C ~60°C. Capable of DIN-Rail mounting, the device is simple to install and easy to fit in limited spaces. Features a DC jack with a locking function to ensure continuous power connectivity.Economic and Space-saving Design: Designed in a space-saving, compact and slim housing. This standalone low-cost media converter provides transparent conversion at 1000Mbps without data stream interference and inexpensively connects both 10/100/1000Mbps copper port and Fast/Gigabit Ethernet SFP in a small enclosure. The compact size allows the converters to be wall-mounted to save space. Extremely simple to install and operate.Fault-tolerant and User-friendly Monitoring: Network administrators can easily monitor and troubleshoot issues associated with device functionality and link activity using the HMC-672E advanced features. LFS (Link Fault Signalling) feature provides critical information about link status, enables detection of optical signal strengths and faulty links on both copper and fiber ports, and minimizes outage. LEDs convey essential diagnostic and status information of device power, link activity on ports, and allow easy monitoring.Easy Plug-and-play Operation: Compact, lightweight, easy-to-setup and ready-to-use solution for dispersed or emerging networks. Featuring Auto-MDI/MDIX and Auto-negotiation, the media converter automatically detects and configures the best mode of operation over a link. This eliminates the need for user setup or configuration procedures and simplifies installation. The Link Fault Signaling DIP switch provides the simplest and quickest way to enable or disable LFS function.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX)Interface: Ports: 1 x 100FX/1000BASE-X (SC/ST), 1 x 10/100/1000BASE-T (RJ45)LED Panel: PWR, Fiber (1000, LNK/ACT), RJ45 (1000, LNK/ACT), ALM (Alarm)DIP: 1: Link Fault Signal, 2: LLB (Local Loopback), 3: RLB (Remote Loopback), 4: SFP SpeedPower: Input Voltage: 12V DC/1A, via external power adapterPower Consumption: 1.8WMechanical and Environment: Housing: Aluminum (IP30 Protection)Mounting: Wall-Mount, DIN-RailOperating Temperature: -10°C~60°C (14°F~140°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating Humidity: 5 to 95 % RH (non-condensing)Storage Humidity: 5 to 95 % RH (non-condensing)Weight: 158 g (0.35 lb)Dimensions (W x H x D): 73.8 x 109.2 x 28.4 mm (2.91 x 4.3 x 1.12 in)Ordering InformationModelDescriptionHMC-672E10/100/1000Base-T to SFP Gigabit Converter, SFP NOT INCLUDEDGBM-1041000Base-SX 1.25G, Multi-mode SFP, 500mGBM-104-101000Base-LX 1.25G, Single Mode SFP, 10KmGBM-123TS1000Base-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10kmGBM-123RS1000Base-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10kmModelDescriptionHMC-672E-MC10/100/1000Base-T to Multi-mode 1000Base-FX Converter, SC connector, 500mHMC-672E-SC10/100/1000Base-T to Single Mode 1000Base-FX Converter, SC connector, 10kmTechnical SpecificationsConverter type: 10/100/1000 RJ45 to 100FX/1000Base-XAuto MDI/MDI-X and Auto-negotiation supportLED status indicatorsOperating temperature: -10°C to 60°CIP30 protection, aluminum housingWall-mount and DIN-rail mounting optionsPower input: 12V DC/1APower consumption: 1.8WWeight: 158gDimensions: 73.8 x 109.2 x 28.4 mm
