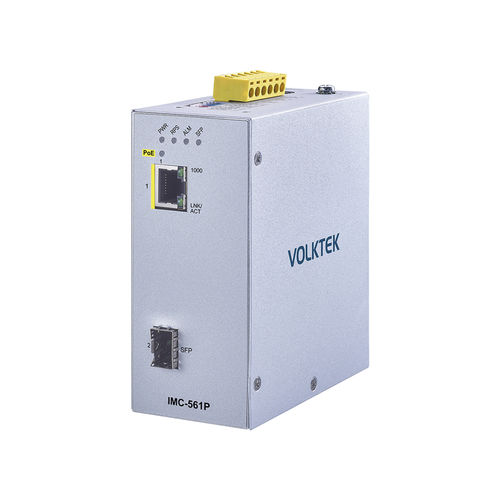

Media converter IMC-561P

signalEthernetDIN rail

Product Highlights 1 x 10/100/1000 PoE+ port and 1 x 100/1000Mbps SFP port Conversion from long distance fiber transmission and noise-free communication to PoE Link Fault Signaling to see connection status Uses technology Line LoopBack to discard some issues IP30 metal housing with high thermal conductivity Operating temperatures -10℃ to 60℃ (14°F~140°F) Overview IMC-561P is a 10/100/1000 PoE+ port and an FX/GbE SFP port industrial converter from fiber to PoE+ for long-distance PD connectivity to the network center using fiber. Compatible with third-party devices, the multi-rate RJ45 port adapts to different speeds and sends data to the SFP port compatible with modules of different speeds. The media converter uses LED signals for users to monitor the link connectivity. The device uses Line LoopBack to diagnose and troubleshoot the device. It controls data transmission using flow control. This media converter is built with industrial grade components and enclosed in an IP30 metal case with high thermal conductivity, which protects the device from tools and hazards. Hardened grade design for temperatures between -10°C to 60°C (14°F~140°F) for indoor and in-cabinet applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Features Connect one Powered Device with Intelligent PoE TechnologyNew surveillance cameras and WAPs use power saving PoE technology to connect to other devices. This media converter supplies 30 Watt power budget to 1 compliant device that works automatically once connected with the help of the plug and play feature. User-friendly Monitoring of Signal Strengths and Faulty LinksLFS (Link Fault Signaling) for easy determination of optical signal strengths and detection of faulty links on both copper and fiber ports. Resistant to Extreme EnvironmentsThe device is built with Industrial grade components, tested in-house, and certified for reliable operation in harsh environmental conditions by international market safety organizations like CE, FCC, and ROHS. Tolerant to mid-high temperatures -10°C to 60°C (14°F~140°F) which make it suitable for in cabinet environments and indoors, also next to multiple machinery. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet - EEE) Interface: Ports: 1 x 10/100/1000BASE-T (PoE RJ45), 1 x 100FX/GbE SFP Slot LED Panel: PWR, RPS, ALM, SFP, PoE, 1000, LNK/ACT DIP Switch: Primary/Redundant Power Voltage Drop Alarm setting Power: Input Voltage: Primary: 48~57VDC, Redundant: 48~57VDC Power Connection: 4-pin DC-Jack (48V DC)(Primary Power Input), 6-pin Terminal block (Primary/Redundant Power Input) Power Input Polarity Protection: Present Power Voltage Drop Alarm: Primary/Redundant Power Input Alarm Relay: One relay output with the current carrying capacity of 1A @ 24V DC Power Consumption: 7W (System), 40W (with 1 PoE plus fully loaded) ESD Protection: Present Surge Protection: Present Mechanical and Environment: Housing: Metal (IP30 protection) Mounting: DIN-Rail, Wall Mount (optional) Operating Temperature: -10°C~60°C (14°F~140°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating Humidity: 5 to 95% RH (non-condensing) Storage Humidity: 5 to 95% RH (non-condensing) Weight: 385 g (0.85 lb) Dimension (WxHxD): 50 x 116 x 100 mm (1.97 x 4.57 x 3.94 in) Ordering Information: ModelDescriptionIMC-561P1 x 10/100/1000 PoE+ to 1 x FX/GbE SFP Hardened Converter Certifications: CE, FCC, ROHS Other Features: Redundant Power Fanless DIN Rail Mounting Surge Protection Technical Specifications Summary: 1 x 10/100/1000 PoE+ port, 1 x 100/1000Mbps SFP port IP30 metal housing Operating temperature: -10°C to 60°C Power input: 48~57VDC (primary/redundant) Dimensions: 50 x 116 x 100 mm Weight: 385 g Certifications: CE, FCC, ROHS
