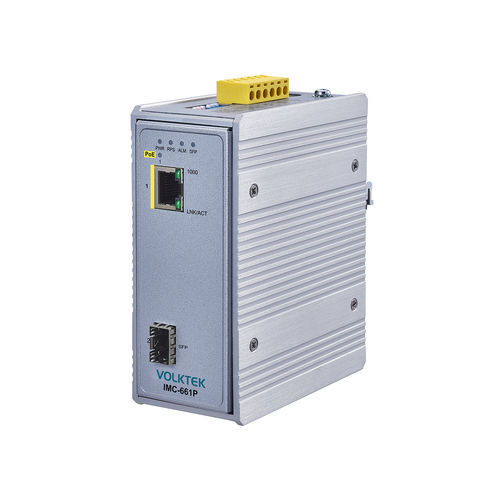

Media converter IMC-661P

signalEthernetDIN rail

Product Highlights:

1 x 10/100/1000 PoE port and 1 x 100/1000 SFP port

Conversion from long distance fiber transmission and noise-free communication to PoE

Link Fault Signaling to see connection status

Uses technology Line LoopBack to discard some issues

IP30 Aluminum housing with high thermal conductivity

Operating temperatures -40C~75C (-40F~167F)

Overview:

IMC-661P is a 10/100/1000 PoE port and an FX/GbE SFP port industrial converter from fiber to PoE for long-distance PD connectivity to the network center using fiber. Compatible with third-party devices, the multi-rate RJ45 port adapts to different speeds and sends data to the SFP port compatible with modules of different speeds.

The media converter uses LED signals for users to monitor the link connectivity. The device uses Line LoopBack to diagnose and troubleshoot the device. It controls data transmission using flow control.

This media converter is built with industrial grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40C~75C (-40F~167F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.
