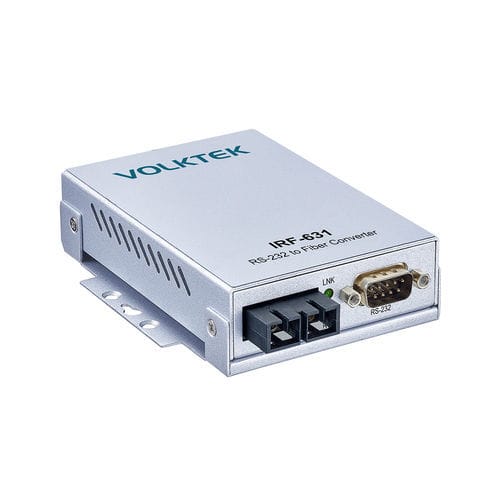

Media converter IRF-631 series

RS-232single-modecompact

Product Highlights - RS-232 to Fiber Converter - 1 x Serial RS-232 (DB-9 Male) - 1 x Fiber (ST/SC; Multi-mode / Single-mode) - Push-button switch to select DTE & DCE - LEDs for at-a-glance device status - Operating temperature 0°C~50°C (32°F~122°F) Overview IRF-631 is an RS-232 to Fiber media converter. The device uses LED signaling to inform users of its transmission activity. Ideal for manufacturing floors with legacy devices that use serial port connectivity. The device is available in single- and multi-mode interface with data transmission delivery at distances of 2km/30km/60km/100km depending on request. For added flexibility, this media converter is available with ST, and SC connectors. This media converter operates between temperatures of 0°C~50°C (32°F~122°F). The device has a standard size to fit on an in-rack solution with multiple media converters. Features - Extendable Optical Connectivity: Extendable up to 2 km for multimode and 120 km for single-mode fiber. - Space-saving Design: Compact and DIN-RAIL mountable. - Easy Plug-and-Play: Compatible with DTE (Data Terminal Equipment) and DCE (Data Circuit-terminating Equipment) for data transmission. - User-Friendly Monitoring: LED status indicators for monitoring power supply and fiber connectivity. Specifications - Standards: EIA/TIA 422, 574; CCITT V.28 - Interface: Ports: 1 x Serial RS-232 (DB-9 Male), 1 x Fiber (ST/SC; Multi-mode / Single-mode) - LED Panel: PWR, LNK - Power: Input Voltage: 9~32V DC; Power consumption: 2.4W - Mechanical and Environment: Housing: Aluminum (IP30 Protection); Mounting: Wall-Mount, DIN-Rail; Operating Temperature: 0ºC~50ºC (32°F~122°F); Storage Temperature: -20ºC~80ºC (-4ºF~176ºF); Operating Humidity: 10% to 90% RH (non-condensing); Storage Humidity: 5% to 90%RH (non-condensing); Weight: 280 g (0.62 lb); Dimension (D x W x H): 90 x 109.2 x 28.4 mm (3.54 x 4.3 x 1.12 in) Ordering Information - IRF-631MC: RS-232 to Multi-mode Fiber Converter (SC Connector-2km) - IRF-631MT: RS-232 to Multi-mode Fiber Converter (ST Connector-2km) - IRF-631SC: RS-232 to Single-mode Fiber Converter (SC Connector, 30km) *Specifications subject to change without prior notice.
