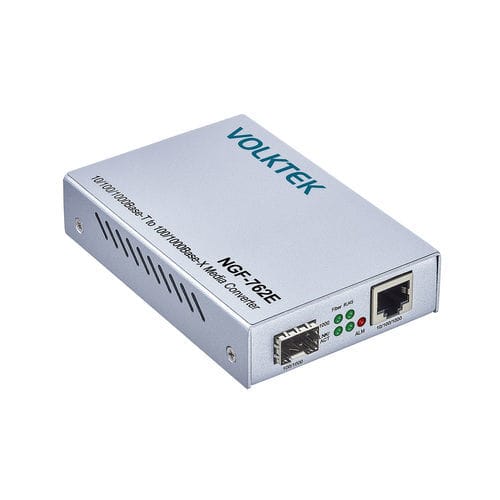

Media converter NGF-762E

protocolsignalDIN rail

Product Highlights 10/100/1000 RJ45 to 100FX/1000Base-X Media Converter Automatic MDI/MDI-X (medium dependent interface / MDI crossover) Auto-negotiation (N Way protocol) support on RJ-45 Link Fault Signaling and LEDs for at-glance device status Operating temperature 0°C~50°C (32°F~122°F) Overview NGF-762E is a 10/100/1000 RJ45 to 100FX/1000Base-X Copper to the Fiber media converter. It's an inexpensive and minimal solution with automatic MDI/MDI-X and Auto-negotiation, NWay support on RJ-45. The device uses LED signaling to inform users of its transmission activity. The converter is completely transparent when connected, meaning that network performance remains unchanged. The device is available in single- and multi-mode interface with data transmission delivery at distances of 500m/2km/10km/40km/50km/70km depending on request. This media converter is available with SC and SFP connectors to add flexibility. This media converter operates between temperatures of 0°C~50°C (32°F~122°F). The device has a standard size to fit on an in-rack solution with multiple media converters. Features Rugged and Robust Design: Enclosed in IP30-grade casing, the media converter provides superior protection from severe temperatures extending from 0°C~50°C (32°F~122°F). Capable of DIN-Rail mounting, the device is simple to install and easy to fit limited spaces. The NGF-762E also features a DC jack with a locking function to ensure continuous power connectivity. Economic and Space-saving Design: Designed in a space-saving, compact and slim housing. This standalone low-cost media converter provides transparent conversion Copper to Fiber in a small enclosure. The compact size allows the converters to be wall-mounted to save space. Extremely simple to install and operate. Fault-tolerant and User-friendly Monitoring: LFS (Link Fault Signalling) feature provides critical information about link status and enables you to easily detect optical signal strengths and faulty links on both copper and fiber ports, minimizing outage. LEDs convey essential diagnostic and status information of device power, link activity on ports, and allow easy monitoring. Easy Plug-and-play Operation: Compact, lightweight, easy-to-setup and ready-to-use solution for dispersed or emerging networks. Featuring Auto-MDI/MDIX and Auto-negotiation, the media converter automatically detects and configures the best mode of operation over a link. The Link Fault Signaling DIP switch provides the simplest and quickest way to enable or disable LFS function. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX/FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX) Interface: Ports: 1 x 10/100/1000BASE-T (RJ45), 1 x 100FX/1000BASE-X LED Panel: PWR, Fiber(1000, LNK/ACT), RJ45 (1000, LNK/ACT), ALM (Alarm) DIP: 1: Link Fault Signal, 2: LLB (Local Loopback), 3: RLB (Remote Loopback), 4: SFP Speed Power: Input Voltage: 12V DC/1A, via external power adapter Power Consumption: 1.8W Mechanical and Environment: Housing: Aluminum (IP30 Protection) Mounting: Wall-Mount, DIN-Rail (Optional), Chassis Compatible Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -20°C~70°C (-4°F~158°F) Operating Humidity: 5 to 95 % RH (non-condensing) Storage Humidity: 5 to 95 % RH (non-condensing) Weight: 131 g (0.29 lb) Dimensions (W x H x D): 73.8 x 23.4 x 109.2 mm (2.9 x 0.92 x 4.3 in) Ordering Information ModelDescriptionNGF-762E10/100/1000Base-T to SFP Converter SFP (NOT INCLUDED), Chassis Pluggable ModelSFP TransceiverGBM-1041000Base-SX 1.25G, Multi-mode SFP, 500mGBM-104-21000Base-SX 1.25G, Multi-Mode, 3.3V, 1310nm, 2KmGBM-104-101000Base-LX 1.25G, Single Mode SFP, 10KmGBM-123TS1000Base-LX, Bi-Di SFP TX:1310/RX:1550 Single Mode, 10kmGBM-123RS1000Base-LX, Bi-Di SFP TX:1550/RX:1310 Single Mode, 10km ModelDescriptionNGF-762E-MC10/100/1000Base-T to Multi-Mode 1000Base-FX Converter, SC connector, 500mNGF-762E-SC10/100/1000Base-T to single mode 1000Base-FX Converter, SC connector, 10kmNGF-762E-SC2010/100/1000Base-T to single mode 1000Base-FX Converter, SC connector, 20kmNGF-762E-SC4010/100/1000Base-T to single mode 1000Base-FX Converter, SC connector, 40km Certifications & Features 0°C-50°C Operating Temperature Auto Negotiation Auto MDI/MDIX Plug & Play IP Code 30 Wall Mount ROHS CE FC Technical Specifications Model: NGF-762E Type: 10/100/1000 RJ45 to 100FX/1000Base-X Media Converter Ports: 1 x 10/100/1000BASE-T (RJ45), 1 x 100FX/1000BASE-X Input Voltage: 12V DC/1A Power Consumption: 1.8W Housing: Aluminum (IP30 Protection) Mounting: Wall-Mount, DIN-Rail (Optional), Chassis Compatible Operating Temperature: 0°C~50°C (32°F~122°F) Storage Temperature: -20°C~70°C (-4°F~158°F) Operating Humidity: 5 to 95 % RH (non-condensing) Storage Humidity: 5 to 95 % RH (non-condensing) Weight: 131 g (0.29 lb) Dimensions: 73.8 x 23.4 x 109.2 mm (2.9 x 0.92 x 4.3 in)
