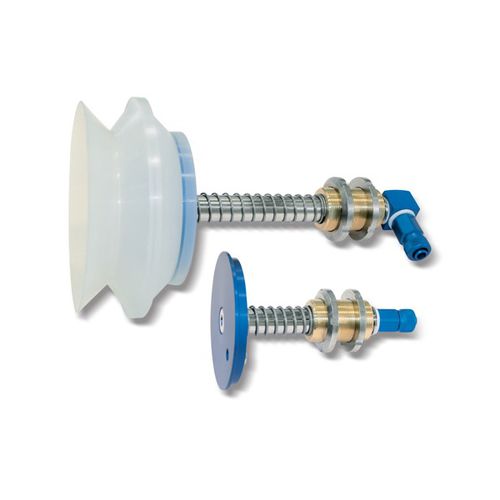

Articulated vacuum cup holder 0675, 0611, 0615, 0618, 0625 Series

articulated vacuum cup holder
articulated vacuum cup holder
Add to favorites
Compare this product


Characteristics

Type
articulated

Description

Special vacuum cup holders for bellows cups These special vacuum cup holders have been designed to lift and handle heavy loads and to withstand heavy-duty and continuous workloads in dusty or damp environments. They are composed of: - A chrome-plated steel stem for fastening the cup - A brass threaded support with self-lubricating bushes, equipped with two ring nuts for fastening the cup holder to the automation - A spring to cushion the impact of the cup with the load to be lifted - A quick coupling for connection with the suction hose The actual springing stroke is: - For height C= 55 mm 37 mm - For height C= 110 mm 84 mm
