Anti-rotation vacuum cup holder VCH series

WITH BUILT-IN SPRING

Product description

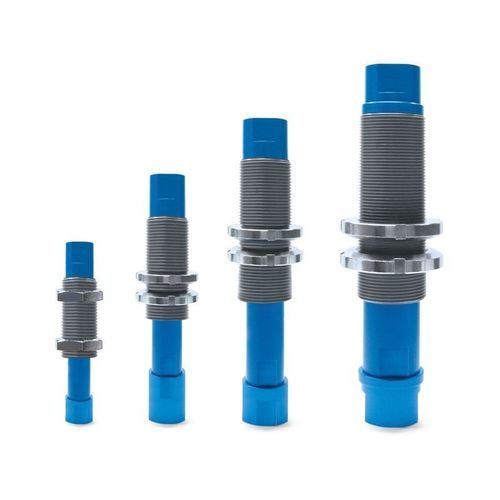

VCH series anti-rotation vacuum cup holders are aluminium components engineered for gripping and handling systems. The anti-rotation mechanism prevents unwanted rotation of the vacuum cup or fitting, ensuring accurate positioning. A spring embedded in the body protects the elastic mechanism from impacts, dirt and contaminants, maintaining consistent response. The large inner passage cross-section allows high vacuum flow for fast grip and release cycles, even with large cups. A threaded bushing provides a wide mounting adjustment range for precise positioning. Plastic sliding bushings ensure smooth, quiet movement with reduced maintenance. Compact overall dimensions enable integration in confined spaces. Two lock nuts secure the assembly, while male and female threaded connections allow quick connection to various mechanical configurations. Ideal for robotics, Pick & Place systems and industrial automation where precision and adjustability are required.

Product codes

• VCH18F20
• VCH18F35
• VCH14F25
• VCH14F50
• VCH38F40
• VCH38F80
• VCH12F36
• VCH18M20
• VCH18M35
• VCH14M25
• VCH14M50
• VCH38M40
• VCH38M80
• VCH12M36

Characteristics / technical specifications

• Material: aluminium structure (lightweight, high strength)
• Type: anti-rotation vacuum cup holder (VCH series)
• Anti-rotation system to prevent cup/attachment rotation
• Built-in spring in body to protect elastic mechanism from impact and contaminants
• Large inner passage cross-section for abundant vacuum flow
• Threaded bushing for wide mounting adjustment and precise positioning
• Plastic sliding bushings for smooth, quiet movement and reduced maintenance
• Compact overall dimensions for integration in confined spaces
• Two lock nuts for secure fastening
• Male and female threaded connections for quick system connection
• Typical applications: robotics, Pick & Place systems, industrial automation
