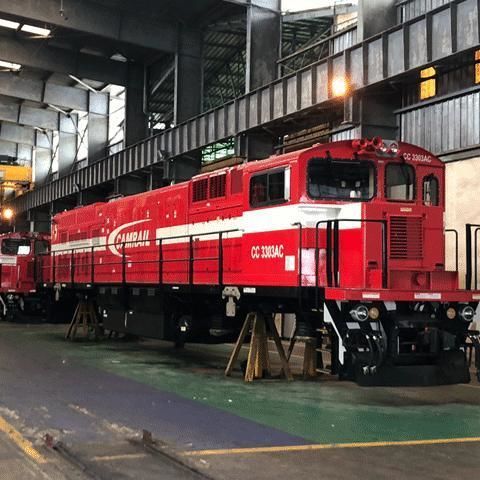

Diesel locomotive C20ACi

freight

Overview
The C20ACi locomotive is designed for higher pulling capacity to support lighter axle-load applications and incorporates full AC traction technology for heavy-haul operation. AC individual-axle traction-control technology maximizes tractive effort and improves hauling capacity. The 7FDL/EFI turbocharged engine is proven above 4,000 m altitude and for temperatures from -50° C to +50° C, withstanding high cyclic thermal loads.

Product Specifics

• Model: C20ACi
• Brand: Wabtec
• 7FDL8 Engine: 2,250 GHP @ 1050 rpm
• AC propulsion system with one inverter per axle and dynamic brake to zero KPH
• GE CCA Control System; Central Diagnostics System; Individual TM isolation
• Electronic air brake system
• Starting Tractive Effort (STE): up to 40,000 kgf
• Dynamic Braking Effort (DBE): up to 20,000 kgf (peak)
• Axle loading/arrangement: 17.5 metric ton, C-C
• Fuel capacity (usable): 3,000–4,600 liters
• Gauge adaptability: 1.00–1.676 m

Customer Value

• Haulage capability that can replace up to two DC locomotives
• Designed to operate on sharp curves and to meet tight clearances
• Low horsepower deration at high altitude
• Low operational costs, high availability and proven reliability in heavy-haul operations

Characteristics / Technical specifications

• Model: C20ACi
• Engine family: 7FDL series, turbocharged, EFI
• Rated power: 2,250 GHP @ 1050 rpm
• Traction: AC individual-axle traction control; one inverter per axle
• Brake systems: Electronic air brake; dynamic braking to zero KPH
• Control & diagnostics: GE CCA Control System; Central Diagnostics System; Individual TM isolation
• Starting tractive effort (STE): up to 40,000 kgf
• Dynamic braking effort (DBE): up to 20,000 kgf (peak)
• Axle arrangement: C-C
• Axle load: 17.5 metric ton (typical)
• Fuel capacity (usable): 3,000–4,600 liters
• Track gauge adaptability: 1.00–1.676 m
• Environmental capability: validated for operation above 4,000 m and temperatures from -50° C to +50° C
