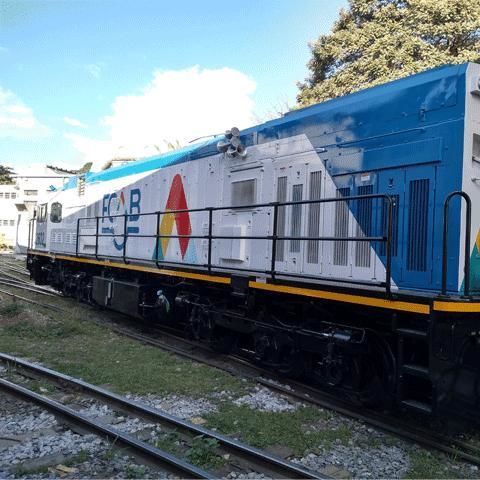

Diesel locomotive C21-C25EMP

Overview
The C21–C25EMP series are DC locomotives engineered for low axle load and configurable horsepower. They pair a 7FDL 12-cylinder EFI turbocharged diesel engine with the BrightStar microprocessor control for traction-motor temperature management. The 7FDL platform is proven in operations above 4,000 m and across temperatures from -50 °C to +50 °C.

Product details

• Series: C21–C25EMP (DC)
• Engine: 7FDL12, EFI, turbocharged — up to 3300 GHP / 2300–3000 THP @ 1050 rpm
• Power transmission: AC‑DC with BrightStar microprocessor control
• Brake system: electronic air brake (ECP) and dynamic braking
• Tractive effort: Starting (STE) 32,000 kgf; Continuous (CTE) 26,500 kgf
• Dynamic braking effort (DBE): up to 22,400 kgf (peak)
• Axle arrangement/loading: C‑C; axle load 16–20 mt
• Fuel capacity: usable 4,500–6,000 liters
• Gauge compatibility: 1.00–1.676 m

Qualitative benefits

• Low axle load enabled by a 12‑cylinder medium‑speed engine
• Extended overhaul intervals compared with similar lightweight locomotives
• Reduced horsepower deration at high altitude and managed performance
• Designed for tight curves and constrained tunnel clearances
• Optimised for operational availability and predictable maintenance cycles
• Configurable horsepower to match route and payload requirements

Technical specifications

• Model range: C21–C25EMP
• Prime mover: 7FDL12 (12‑cylinder, EFI, turbocharged)
• Rated/configurable power: up to 3300 GHP (≈2300–3000 THP @ 1050 rpm)
• Control: BrightStar microprocessor traction control with motor temperature management
• Transmission: AC‑DC
• Braking: ECP electronic air brakes; dynamic brake DBE up to 22,400 kgf (peak)
• Tractive effort: STE 32,000 kgf; CTE 26,500 kgf
• Axle arrangement/load: C‑C; 16–20 mt axle load
• Fuel tank: 4,500–6,000 L usable
• Gauge: 1.00–1.676 m
• Operational envelope: proven >4,000 m altitude; -50 °C to +50 °C
