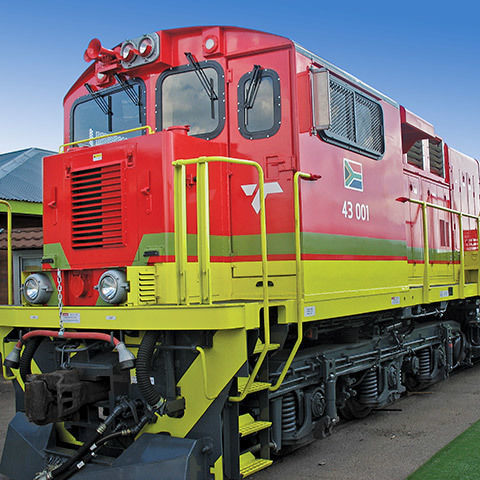

Overview The C30ACi is a diesel-electric heavy-haul locomotive designed to deliver high tractive effort for lighter axle-load applications while integrating full AC traction technology for demanding freight operations. Individual-axle AC traction control maximizes adhesion and hauling capacity. The turbocharged 7FDL/EFI engine is validated for operations above 4,000 m and in temperatures from -50°C to +50°C, resisting high cyclic thermal loads.

Product Specifics

• Engine: 7FDL12 — 3300 GHP / 3100 THP @ 1050 rpm
• AC propulsion system with one inverter per axle
• Dynamic brake capable down to 0 KPH
• CCA control system / Central diagnostics / Individual TM isolation
• Electronic air brake system
• Starting / continuous tractive effort: STE up to 54,880 kgf; CTE 46,900 kgf
• Dynamic braking effort (DBE): up to 29,368 kgf (peak)
• Axle loading / arrangement: 18.5–21 t per axle, C-C configuration
• Fuel capacity: 5,000–8,400 L usable
• Gauge compatibility: 1.00–1.676 m

Customer Value

• High haulage capability that can replace up to two DC locomotives
• Designed to operate on sharp curves and within tight clearance envelopes
• Low horsepower deration at high altitude supports reliable performance
• Proven low operating costs, high availability and reliability in heavy-haul service

Technical specifications

• Model: C30ACi
• Prime mover: 7FDL12 turbocharged (EFI)
• Power rating: 3300 GHP / 3100 THP @ 1050 rpm
• Traction: AC propulsion with one inverter per axle; individual-axle traction control
• Braking: Dynamic brake to 0 KPH; electronic air brake system
• Control & diagnostics: CCA control, central diagnostics, individual TM isolation
• Tractive effort: STE up to 54,880 kgf; CTE up to 46,900 kgf
• Dynamic braking effort: up to 29,368 kgf (peak)
• Axle load / arrangement: 18.5–21 t, C-C
• Fuel capacity (usable): 5,000–8,400 L
• Gauge: 1.00–1.676 m
• Operating envelope: proven above 4,000 m altitude; -50°C to +50°C
