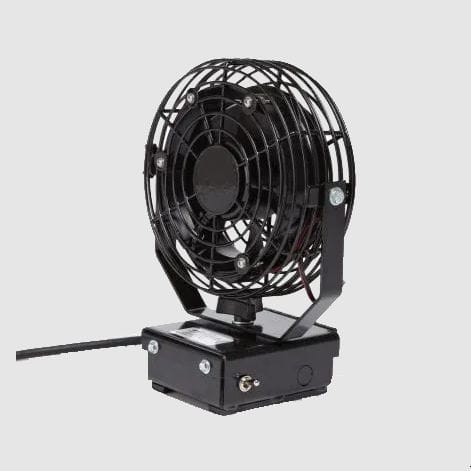

Orientable fan ME810

for air circulationDCbrushless motor

Overview
ME810 maintains cooler, more comfortable locomotive cabs. The brushless motor minimizes emitted noise. Designed for enclosed, high-temperature cabs, the ME810 fan delivers directed airflow and mounts to support individual crew comfort. Multidirectional airflow adjustments accommodate conductor needs and the unit is adaptable for switcher or road locomotives.

Features

• Brushless motor for reduced noise
• Mounts in any position for flexible installation
• Multidirectional airflow adjustment
• Adaptable to switcher and road units
• Available in single-speed or two-speed models
• Nominal 74 V DC operation

Electrical and performance details

• Nominal design: 74 V DC (32 V unit available on special order)
• Input voltage range: 40–100 V DC
• Operating current: 0.7–1.1 A DC
• High speed airflow: 565 CFM
• Low speed airflow (two-speed models): 540 CFM
• Weight: 6 lb

Applications / Technical specifications

• Model: ME810
• Type: locomotive cab fan, brushless
• Mounting: fits in any orientation on the cab panel
• Intended use: improve crew comfort in enclosed locomotive cabs
• Options: single-speed or two-speed versions
• Supply: nominal 74 V DC; input 40–100 V DC; 32 V unit available on request
• Performance: 565 CFM (high), 540 CFM (low, two-speed)
• Weight: ~6 lb
