Overview

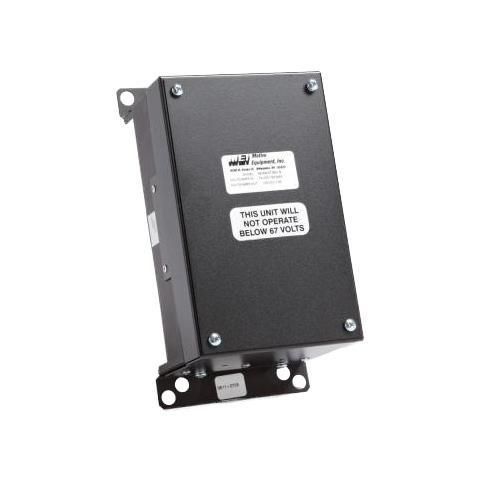

ME408-6ST is an easy-mount inverter designed to provide clean 120V AC power in locomotive cabs by converting 74V DC to single-phase 120V AC at 7 A. Available with or without a terminal-board cover and engineered for compatibility with common consumer electronics.

Product summary

• Type: easy-mount cab inverter for locomotives
• Input: 74V DC
• Output: 120V AC, single-phase
• Rated output current: 7 A
• Mounting: easy-mount, designed for cab installation
• Options: terminal-board cover available
• Compatible with phone chargers, laptops and similar electronics

Features

• High-reliability electronic components
• Terminal-board cover to protect electrical connections
• Electronic current limiting
• Reverse-voltage protection

Applications

• Powering cab fans and ventilation systems
• Supplying cabin refrigerators
• Feeding chargers and low-power electronic accessories in the cab

Technical specifications

• Model: ME408-6ST
• Brand: Wabtec Corporation
• Input voltage: 74V DC
• Output voltage: 120V AC (single-phase)
• Output current: 7 A
• Mounting: easy-mount for cab installation
• Cover: available with or without terminal-board cover
• Protection features: electronic current limiting; reverse-voltage protection; protected terminal connections
• Designed for cab use; waveform and power compatible with most consumer and laptop electronics
