Underfloor train air conditioning system ME7091

hermeticfor locomotivesdriver's cabin

Overview

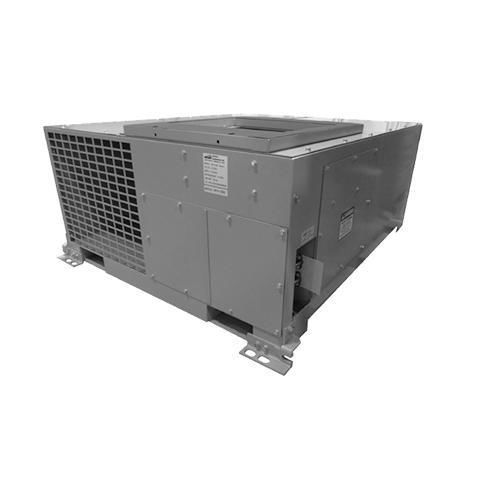

ME7091 is an underfloor-mounted HVAC unit designed for GE EVO-style diesel-electric locomotives. The unit combines heating, ventilation and air conditioning to maintain cab environmental requirements year-round, while minimizing maintenance through inverter-driven components.

Design & operation
The ME7091 series is inverter-driven to run from the 74 VDC locomotive bus and generate three-phase AC for HVAC motor loads. All motors are inverter-driven and the compressor is a hermetic scroll type. The inverter provides multiple operation modes and integrates thermostats, safeties and electronic protections including overload and reverse-polarity protection.

Features

• 30,000 BTUH cooling capacity (2-stage)
• 11.25 kW electric heating (standard, 3-stage; other wattages optional)
• 2-stage blower-only operation
• High-performance blowers and fans for cab air distribution
• Hermetic scroll compressor
• Advanced electronic controls and protections
• Internal thermostat to maintain cab comfort
• Built-in overload and safety controls

Technical specifications

• Model: ME7091 (underfloor-mounted locomotive HVAC unit)
• Application: Diesel-electric locomotives, GE EVO-style underfloor platform
• Power system: Inverter-driven units operating on 74 VDC locomotive bus to generate three-phase AC for motor loads
• Compressor type: Hermetic scroll compressor
• Cooling capacity: 30,000 BTUH (2-stage)
• Heating capacity: 11.25 kW (standard) in 3 stages; other wattages optional
• Blower operation: 2-stage blower-only operation; high-performance blowers and fans
• Control modes: 8 standard modes (Off, Low Fan, High Fan, Low Cool, High Cool, Low Heat, Medium Heat, High Heat); additional modes optional
• Controls & protections: Integrated thermostats and safeties; inverter with overload, reverse-polarity and motor-load protections
• Benefit: Year-round cab environmental control with minimized maintenance requirements
