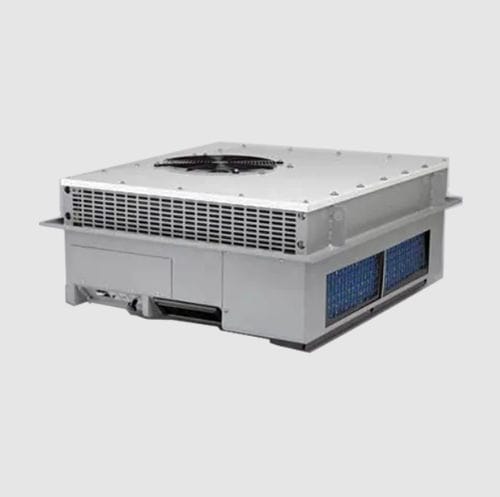

Roof-mounted train air conditioning system ME7200

hermeticfor locomotivesdriver's cabin

Overview
The ME7200 rooftop air conditioner provides 30,000 BTUH of cooling for locomotive crew cabins. Suited for new builds and retrofit projects, the roof-mounted unit is designed for continuous operation in high-heat environments.

Product details
The ME7200 features a 5-position rotary switch and thermostat for crew comfort control and two blowers to distribute conditioned air across the entire cab. Installation requires bolting the unit into the roof opening and connecting electrical and drain lines. Service access is provided for routine maintenance.

Features

• 30,000 BTUH cooling capacity
• 74 V DC internal inverter drive
• Hermetically sealed scroll compressor
• Four discharge openings with adjustable louvered grills
• 2-stage cooling and 3-stage blower-only operation

Variants

• Available with integrated heating and with specialized power and drain connections for specific installations

Technical specifications

• Model: ME7200
• Cooling capacity: 30,000 BTUH
• Power: 74 V DC internal inverter
• Compressor: hermetically sealed scroll
• Air distribution: 4 discharge openings with adjustable louvers
• Controls: 5-position rotary switch and thermostat
• Blowers: two blowers; 3-stage blower-only operation
• Cooling: 2-stage operation
• Mounting: roof-mounted, bolt-down into roof opening; electrical and drain connections required
• Applications: new locomotives and retrofit installations
