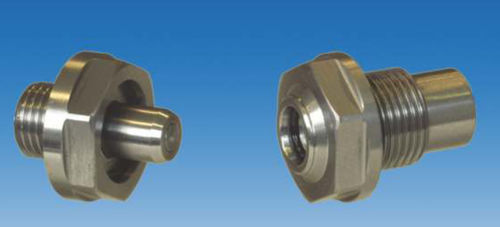

Hydraulic fitting 57 series

quickstainless steelcompact

Compact catridge couplings for cavities in customers’ machines, purpose-built for machine tool requirements. Equipped with low-leakage clean-break technology. Operation is versatile thanks to integrated centre deviation tolerance during coupling and low coupling force requirement. For easy and clean change of machine components, e.g. for supply of exchangeable milling heads of machine tools. Media: Suitable for cooling lubricant, hydraulic clamping, blow-off air. Materials: High-quality stainless steel combined with chemical-resistant FKM seals. Special features: For depressurised connection Mechanically rugged through protected seals High permissible center deviation of +/- 0.5mm For fast movement of pallets in machining centres, even in demanding cycle operation, e.g. for supplying the hydraulic clamping function in pallet changing systems Media: Suitable for all common hydraulic oils Materials: Burnished high qualitiy steel, combined with robust seals made of FKM/PUR Special features: Prevents dirt ingression due to encapsulated seals Ultra short couple stroke
