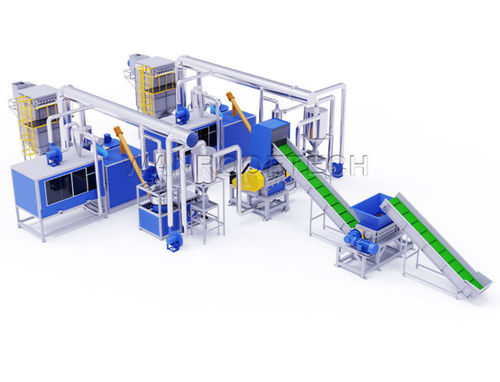

Compact PCB separator PCBR series

Waste PCB board e-waste recycling machine is mainly used for the separation of metal from non-metal in the waste circuit board, copper clad board, waste PCB breadboards and other material. The separation purity of the whole PCB recycling equipment is up to 98%. The waste PCB board e waste recycling machine takes two stages of recycling waste printed circuit boards, making them a mixture of metal and resin fiber powder, then the metal and the resin are separated by the wind separator and static electricity separator. In order to prevent dust pollution in the process of processing, the dust pollution problem is effectively solved by adding a pulse-jet bag filter dust collector. The development waste PCB board e waste recycling machine not only improves the quality of copper recovery but also prevents secondary pollution. Waste PCB Board E-waste Recycling Machine Description: - Waste PCB board e-waste recycling machine is used to recycle all kinds of printed circuit boards, such as computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials. With the PLC control system, the E-waste recycling machine could make the PCB recycling machine fully automatic with stable performance, and easy to operate. And the Waste PCB board e-waste recycling machine is designed with an integrated type compact structure that could save land occupy size and is easy to install. Further, the on-the-spot installation, commissioning and operator training service, would avoid your trouble on installation and operation. During the PCB recycling process, PCB would be firstly shredded or crushed, then sieved by rotatory vibrating screen and separated through air separation and electrostatic separation, which could achieve the recovery rate of 99.9%. Waste PCB Board E-waste Recycling Machine Process flow: - The Waste PCB board e-waste recycling machine adopts a 2-stage-crushing step to get mixed metal and resin powder. And then it separates metal and resin powder via airflow and high voltage electrostatic separator. Waste PCB Board E-waste Recycling Machine Components: 1. PCB dismantling machine: Disconnects the electronic components from the circuit board to get the electronic components, tin and the motherboard. Mainly used as special equipment for dismantling electronic components. 2. Shredder: Waste PCB board shredded PCB scrap by double shaft shredder machine. 3. Crusher: The crusher reduces the printed circuit board into a particle size of about 13 mm. 4. Pulverizer: The PCB scrap is ground into powder by plastic grinding machine, achieving the separation of lumpy materials into copper and plastic powder. 5. Airflow separator: Different physical reactions produced by the proportion of the material under the same airflow are separated from copper and plastic. 6. Electrostatic separator: Through the effect of static adsorption, the insulation and non-insulation are separated, and the separation of copper and plastic. 7. Pulse dust collector: The whole process is under sealed structure with an advanced pulse dust collector, ensuring no dust flies around during the operation. Waste PCB Board E-waste Recycling Machine Technical Features: - Technical features of electronic waste recycling machine for waste PCB boards: optimized grinding machine design, integrated circulating water cooling system, achieving precise temperature control and noise reduction; PLC full process precise control, combined with negative pressure feeding system, effectively suppresses dust overflow; Integrated intelligent feedback system, dynamically optimizing grinding efficiency; Combining air jet and pulse dust removal device to ensure high-purity separation of materials; Electrostatic sorting accelerates the recovery of non-ferrous metals, supplemented by magnetic separators to achieve efficient separation of iron and metal, and builds a closed-loop environmentally friendly production line. Waste PCB Board E-waste Recycling Machine Application Areas: - computer boards - cell phone boards - TV boards - copper-clad laminate What’s In PCB That Could Be Recycled? - From the research for normal PCB boards, in which the percentages of the electronic components, baseboard and soldering tin are 58%, 37% and 5% separately. And for every one-ton baseboard, includes about 40% metal materials and 60% nonmetals, which contain almost all the common elements in the periodic table. By estimate, 1-ton computer circuit board, contains 0.5kg gold, 130kg copper, 10kg iron, 60kg Plumbum, 40kg tin, 36kg nickel, 40kg antimony and some other rare precious metals, like Platinum, palladium, etc. - Optimized grinding machine design - Integrated circulating water cooling system - PLC full process precise control - Negative pressure feeding system - Integrated intelligent feedback system - Air jet and pulse dust removal device - Electrostatic sorting for non-ferrous metals - Magnetic separators for iron and metal - Closed-loop environmentally friendly production line
