Aluminum recycling unit PNMR series

metalfor copperfor TV

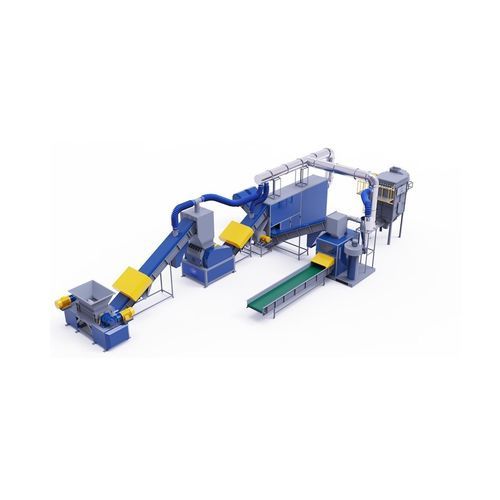

Radiator recycling machine is specially designed for crushing scrap air conditioning radiators and then separating copper, aluminum and iron for recycling. The whole process includes shredding, crushing, and separating. PLC intelligent system realized high automation, the whole line just needs 3-4 people to operate. With over 20 years of experience in recycling, Wanrooe not only mastered the key technology but also improved machine designs to address specific product features. Wanrooe offers radiator recycling machines that are high output and low energy consumption. Application Areas: The waste radiator recycling plant can process all kinds of large blocks of the radiator (copper and aluminum water tank) or motor rotor (with axle) ≤15cm. Technical Features: - Adopt electric control cabinet to control the whole system. - High efficiency, saving labor and cost. - The separating rate can reach 99.8%. - Low noise, the noise is not more than 85db. - The voltage can be customized as per your requirements. - Adopt cyclone dust collector, no pollution to the environment. Working Process: 1. The double shaft shredder cuts and shreds the condenser and evaporator initially. 2. The hammer crusher further crushes and cuts the material into a small size for easy sorting. 3. The air blower sorts out the copper and aluminum mixture and aluminum. 4. The air flow sorter sorts out copper and aluminum. 5. Dust is collected by a pulse dust catcher through the air duct. Detailed technical parameters: - Model: PNMR-1000, Capacity: 1000 kg/h, Sorting Efficiency: 97%, Dust removing efficiently: 99%, Power: 55*2 Kw - Model: PNMR-2000, Capacity: 2000 kg/h, Sorting Efficiency: 97%, Dust removing efficiently: 99%, Power: 75*2 Kw - Model: PNMR-3000, Capacity: 3000 kg/h, Sorting Efficiency: 97%, Dust removing efficiently: 99%, Power: 115*2 Kw - Model: PNMR-5000, Capacity: 5000 kg/h, Sorting Efficiency: 97%, Dust removing efficiently: 99%, Power: 145*2 Kw Main Equipment (examples): - Pulse Dust Collector - Radiator Separator Machine - Electrostatic Separator - Metal Crusher - Double Shaft Shredder - Airflow Gravity Separator Key Features / Technical Specifications: - High automation with PLC system - Processes radiators and motor rotors up to 15cm - Sorting efficiency: up to 97% - Dust removal efficiency: up to 99% - Customizable voltage - Low noise operation (<85db) - Models: PNMR-1000, PNMR-2000, PNMR-3000, PNMR-5000 - Power: 55*2 Kw to 145*2 Kw depending on model
