Water pump SERVODRIVE
electriccentrifugalstationary

Add to favorites

Compare this product

Go to the Waterjet Corporation s.r.l. website for more information

Characteristics

Fluid: water
Operation: electric
Technology: centrifugal
Mobility: stationary
Domain: industrial
Applications: for water-jet cutting
Other characteristics: servo-driven, hybrid
Flow: 3.7 l/min
(0.97744 us gal/min)
Pressure: 4,150 bar
(60,190.661 psi)
Power: 29 kW
(39.43 hp)
Length: 1,900 mm
(75 in)
Width: 600 mm
(23.62 in)
Height: 1,377 mm
(54.21 in)

Description

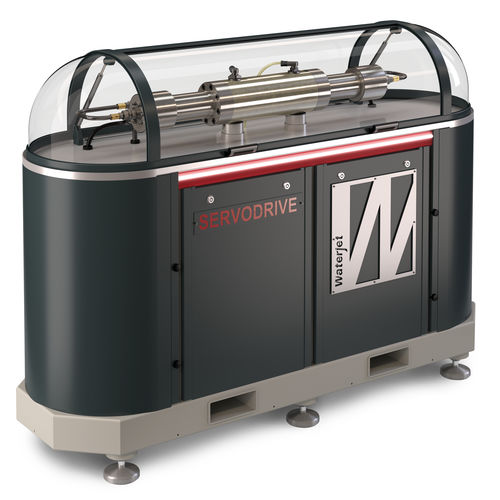

SERVODRIVE™ is an innovative High Efficiency (85%) HYBRID Servo Intensifier Pump with a PATENTED progressive openings hydraulic system able to generate a pressure up to 4.150 Bar. The Numerical Control synchronized the working pump cycles ensuring 32% energy saving compared to a traditional oleo-dynamic intensifier pump powered by asynchronous motor. • Efficiency* : > 90% • HYBRID Intensifier system : PATENTED hydraulic system with • progressive opening valves • Power Consumption (head closed) : 0 kW • Total energy saving (compared to traditional oleodynamic system) : 14 kW/h = 37% (27% full load savings + 10% cicles saving with head closed) • Oil Tank : 20 lt • 5 GAL • Low Noise : < 78 dB
