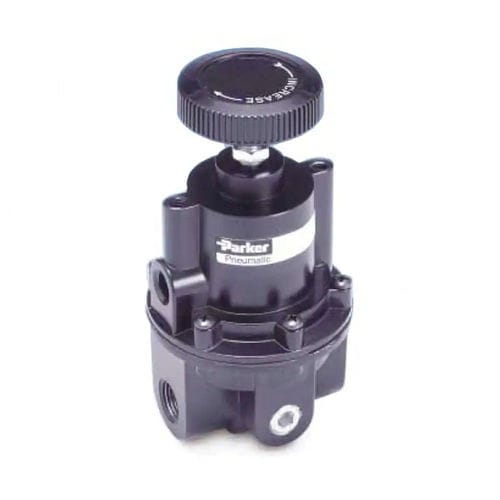

Membrane pressure regulator R230 series
two-stagealuminumindustrial

membrane pressure regulator
membrane pressure regulator
membrane pressure regulator
membrane pressure regulator
Add to favorites
Compare this product


Characteristics

Technology
membrane
Number of stages
two-stage
Material
aluminum
Applications
industrial
Other characteristics
high-precision, high-flow
Pressure

Max.: 17 bar (246.56 psi)

Min.: 0 bar (0 psi)

Flow

80 ft³/min (2.27 m³/min)

Description

The R230 providing the highest level of regulation accuracy and repeatability is designed for applications that require high flow capacity and accurate process control. A poppet valve which is balanced by utilising a rolling diaphragm, insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the air supply in accordance with the flow velocity. Markets •Air and Gas • - Appliances • - Entertainment Automation • - Factory Automation • - Machine Tools • - Misc. Industrial • - Misc. Manufacturing • - Molding • - Packaging Machinery • - Printing and Marking Equipment • - Vehicle Assembly Facilities • - Wearing Apparel • - Food and Beverage • - Misc. Processing Features/Benefits • - Adjusting knob • - Diaphragm design for good repeatability, response and sensitivity • - Balanced poppet • - Two full flow gauge ports • - Precise regulation. Will Sense a decrease in downstream pressure as small as 1/4* of water • - High flow capacity. Flows of 37.8 dm3/s attainable with minimal drop • - Stable output. Dampening action of aspiration tube makes regulator insensitive to changes in flow • - On-line maintenance. Can be serviced without removal of air line
