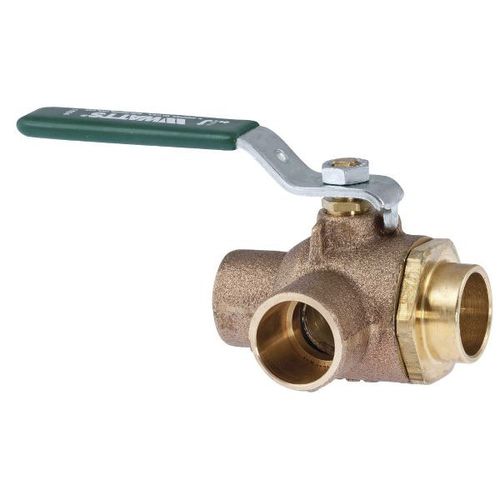

Ball valve LFB6780, LFB6781 series
leverdiverter2-piece

ball valve
ball valve
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
lever
Function
diverter
Body
2-piece, bronze
DN

Min.: 8 mm
(0.315 in)

Max.: 50 mm
(1.969 in)

Pressure

8.6 bar, 28 bar
(124.7 psi, 406.1 psi)

Temperature

100 °F
(38 °C)

Description

Series LFB6780, LFB6781 2-Piece, Full Port, Lead Free* Copper Silicon Alloy Diverter Ball Valves are designed to divert liquids and gases in commercial and industrial applications. The LFB6780, LFB6781s full port orifice ensures minimal pressure drop, while PTFE seats and stainless steel ball provide lasting service. Model LFB6780 has threaded NPT end connections and Model LFB6781 has solder end connections. Pressure Rating: 400psi (28 bars) WOG (non-shock) @ 100°F and 125psi (8.6 bars) WSP.

Catalogs

Ball Valves
Ball Valves
28 Pages
