Forward travel vibratory plate CF 2 DC

compacting

Product description

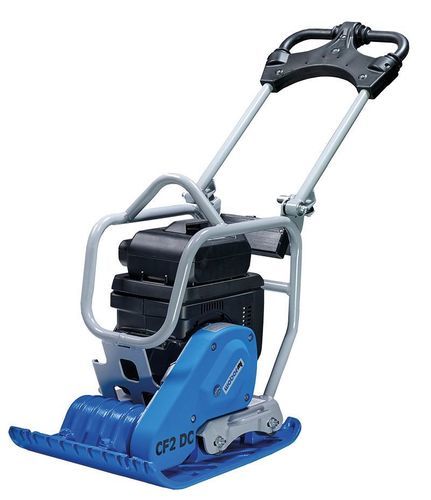

The CF 2 DC forward-moving plate compactor is the electric/battery variant of the petrol models, designed for indoor use and emission-restricted areas. It delivers comparable compaction performance to the petrol version while enabling low-emission operation. The machine features a low-vibration guide handle to reduce hand-arm vibrations and a foldable handlebar and compact dimensions for easier transport.

MODULAR DESIGN:
One battery fits all machines in the Weber MT battery range. Tool-free battery change.

HONDA LI-ION BATTERY:
Battery capacity 720 Wh - Voltage 72 V - Rated capacity 10 Ah
Charging time 0–80% = 1 hour - 0–100% = 1.5 hours

COMFORT:
Simple and reliable push-button start.

INTUITIVE:
Battery with clear charge indicator and self-diagnosis. Easy and intuitive machine controls.

Available accessories (not included):

• Honda battery
• Battery charger
• Integrated wheel kit
• Protective mat for pavers
• Water spray system
• Hour meter (vibration)

Characteristics / Specifications

• Operating weight (incl. battery): 87 kg
• Working width: 45 cm
• Centrifugal force: 15 kN
• Frequency: 95 Hz
• Engine: Honda GXE2.0 (DC-electric)
• Maximum power: 1.8 kW
• Hand-arm vibrations: < 2.5 m/s²
