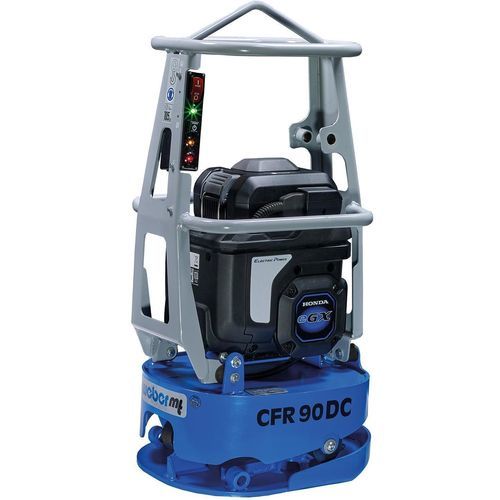

Forward travel vibratory plate CFR 90 DC

compacting

Product overview

Weber MT presents the CFR 90 DC, a forward-running vibratory plate engineered for battery-powered operation to reduce emissions and noise on construction sites. It is optimized for indoor jobs, deep trenches, emission-restricted urban areas, garden design and landscaping, and compaction work at curbstones, manholes and poles. The nearly round base plate ensures excellent maneuverability in confined spaces such as cable trenches.

Design and usability

MODULAR DESIGN: One battery shared across Weber MT's battery-powered series. No-tool battery change.

HONDA LI-ION BATTERY: Battery capacity 720 Wh - Voltage 72 V - Rated capacity 10 Ah. Charging time 0–80% = 1 hour; 0–100% = 1.5 hours.

CONVENIENT: Easy and reliable machine start with a push button.

CLEARLY ARRANGED: Battery with easy-to-read charge indicator and self-diagnostic feature for intuitive operation.

Performance & vibration

Hand-Arm-Vibrations: < 2.5 m/s²

Technical data

TECHNICAL DATA - CFR 90 DC
Operating weight (incl. battery): 96 kg
Working width: 43 cm
Centrifugal force: 14 kN
Frequency: 95 Hz
Motor: Honda GXE2.0 / DC-Electric
Power output: 1.8 kW

Available extras

• Honda Battery
• Charger for battery

Technical specifications

• Operating weight (incl. battery): 96 kg
• Working width: 43 cm
• Centrifugal force: 14 kN
• Frequency: 95 Hz
• Motor: Honda GXE2.0 / DC-Electric
• Power output: 1.8 kW
• Battery: Honda Li-ion, 720 Wh, 72 V, 10 Ah
• Charging time: 0–80% = 1 hour; 0–100% = 1.5 hours
• Hand-Arm-Vibrations: < 2.5 m/s²
• Modular battery system: one battery for all Weber MT battery machines; no-tool battery change
• Easy push-button start, battery charge indicator and self-diagnostic feature
• Intended applications: indoor work, deep trenches, emission-regulated areas, garden design and landscaping, compaction at curbstones, manholes and poles
• Available extras: Honda Battery, Charger for battery
