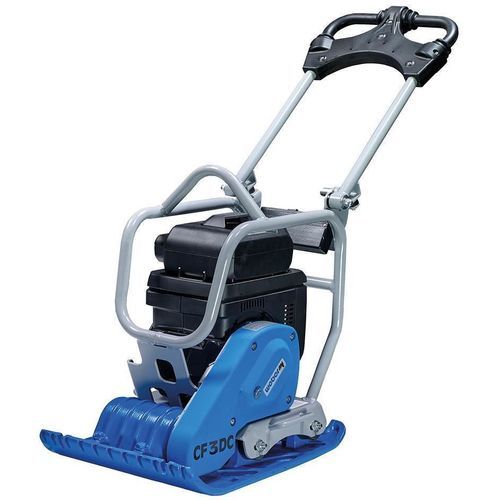

Forward travel vibratory plate CF 3 DC

compacting

Product description
Weber MT, specialist in hand-guided compaction equipment, enables indoor work and operation in emission-regulated urban areas with the forward-moving plate compactor CF 3 DC. The electric/battery machines are based on the corresponding petrol models and deliver comparable performance and compaction results. The low-vibration guide handle reduces hand‑arm vibrations and allows comfortable operation. Compact dimensions and a folding guide handle simplify transport.

Modular design
One battery fits all machines of the Weber MT battery range. Tool-free battery replacement.

Honda Li-Ion battery
Battery capacity 720 Wh — Voltage 72 V — Nominal capacity 10 Ah. Charging time 0–80% = 1 hour — 0–100% = 1.5 hours.

Comfort
Simple and reliable push-button start.

Overview
Battery with clearly visible charge indicator and self-diagnosis. Easy and intuitive machine operation.

Technical data
Operating weight incl. battery: 102 kg
Working width: 50 cm
Centrifugal force: 20 kN
Frequency: 95 Hz
Engine: Honda GXE2.0 / DC electric
Max. engine power: 1.8 kW

Note
Hand‑arm vibrations < 2.5 m/s²

Available accessories

• Honda battery
• Charger for battery
• Integrated wheel kit
• Protective mat for paving
• Water sprinkling
• Operating hours counter (vibration)

Characteristics / specifications

• Model: CF 3 DC
• Operating weight incl. battery: 102 kg
• Working width: 50 cm
• Centrifugal force: 20 kN
• Frequency: 95 Hz
• Engine: Honda GXE2.0 and DC electric
• Max. engine power: 1.8 kW
• Battery: Honda Li‑Ion 720 Wh, 72 V, 10 Ah
• Battery charging time: 0–80% = 1 h; 0–100% = 1.5 h
• Hand‑arm vibrations: < 2.5 m/s²
