Reversible vibratory plate CR 2 DC

forward travelbidirectionalcompacting

Product overview

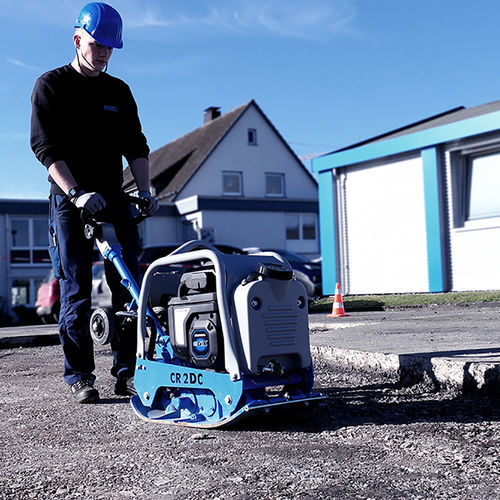

Weber MT presents the CR 2 DC reversible vibratory plate: a battery-powered, reversible soil compactor suitable for indoor work and emission-restricted urban sites. Based on the petrol-engine model, the CR 2 DC delivers equivalent compaction performance for asphalt and pavements with a centrifugal force of 20 kN.

Design and battery

• Modular design: One battery fits all machines in Weber MT's battery series; tool-free battery change.
• Honda Li-ion battery: Capacity 720 Wh; Voltage 72 V; Rated capacity 10 Ah; Charging time 0–80% = 1 h; 0–100% = 1.5 h.

Features

• Convenient: Electric push-button start for reliable machine start-up.
• Clear status: Battery with easy-to-read charge indicator and self-diagnostic function; intuitive operation.
• More about the CR 2 DC:
  • Infinitely variable forward and reverse travel.
  • Variable hydraulic shifting for precise work in confined or challenging areas.
  • Height-adjustable guide bar and low-vibration handles to reduce operator fatigue.
  • Motor protection frame and engine cover protect machine and motor.
  • Optional water sprinkler for asphalt compaction and optional poly pad for pavement work.

Available extras

• Honda battery
• Battery charger
• Poly pad
• Water sprinkler system
• Hour meter

Technical data
CR 2 DC / CR 2/55 DC
Operating weight (incl. battery): 143 / 156 kg
Working width: 45 / 55 cm
Centrifugal force: 20 kN
Frequency: 100 Hz
Motor: Honda GXE2.0 / DC-Electric
Power output: 1.8 kW

Characteristics / specifications

• Model: CR 2 DC
• Operating weight (incl. battery): 143 kg (45 cm) / 156 kg (55 cm)
• Working width: 45 cm / 55 cm
• Centrifugal force: 20 kN
• Frequency: 100 Hz
• Motor: Honda GXE2.0 or DC-Electric
• Power output: 1.8 kW
• Battery: Honda Li-Ion 720 Wh, 72 V, 10 Ah
• Charging time: 0–80% = 1 h; 0–100% = 1.5 h
• Hand-Arm-Vibrations: < 2.5 m/s²
• Features: reversible travel, variable hydraulic shifting, height-adjustable guide bar, low-vibration handles, motor protection frame
• Optional accessories: poly pad, water sprinkler system, charger, hour meter
