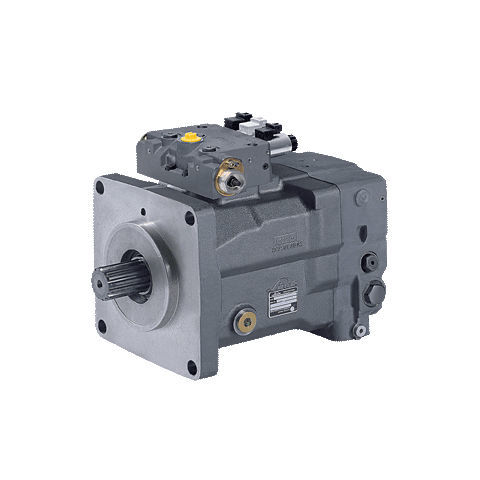

Hydraulic axial piston pump HPV-02

hydraulic motorelectricsteel

Design characteristics High pressure swash plate type axial piston pump for closed system Left-hand or right-hand options Reliable variable control mechanism (mechanical, hydraulic, electric) Integrated high pressure relief valves with make-up function Integrated low pressure relief valves for boost, control and cooler circuits Replaceable cartridge filter SAE high pressure ports SAE mounting flange with ANSI or SAE spline shaft PTO mounting SAE A, B, B-B, C, D and E Boost pressure pumps for internal and external suction, integrated cold start relief valve optional Optional tandem and multiple pumps Controls Mechanical-hydraulic M1R hydraulic proportional control M2E mechnical-hydraulic with emergency braking H1P hydraulic proportional control with pressure cut-off regulation E1 electrical proportional control E1P electrical proportional control with pressure cut-off regulation E2 electrical proportional control with additional safety function E5 electrical 3-position CA speed-related automatic control (based on speed, combined power, torque limit)
