Overview
The universal car door actuator is an electromechanical device used for unlocking and locking doors in different cars. It can be installed on many vehicles because of adjustable mounting and linkage systems. The actuator converts electrical signals (typically 12V DC) into mechanical action to operate with central locking systems. Universal actuators are widely used for customization, repair, and remote locking upgrades of older vehicles because they are cost-efficient, easy to mount, and versatile in control.

Key Features

• High versatility and flexibility for many vehicle types
• Adjustable mounting brackets and linkage for universal fit
• Operates typically on 12V DC (some variants support 24V)
• Fast lock/unlock action with durable motor and gearset
• Compatibility with central locking systems and remote controls
• Compact size suited for installation inside door panels
• Cost-efficient solution for aftermarket upgrades and repairs

How it Works

• An electrical signal from a switch or remote control is sent to the actuator
• The actuator receives power (usually 12V DC)
• The solenoid or motor in the actuator is activated
• The motor drives gears or a linear drive
• A rod or linkage moves the lock mechanism
• The door locks or unlocks accordingly
• Universal actuators are provided with adjustable rods and brackets for fitting different doors

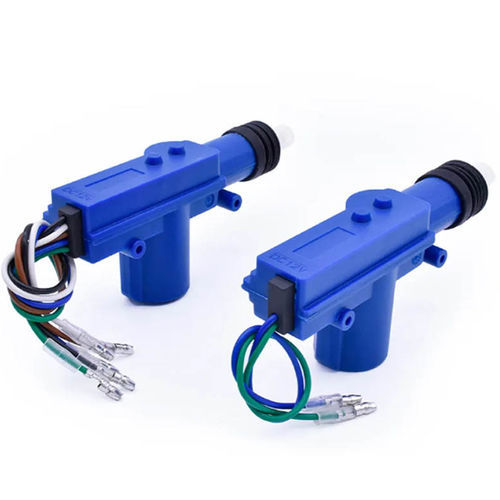

A Look at the WL801 Universal Car Door Actuator
The WL801 is a universal-style actuator intended for aftermarket central locking systems and upgrades. It is designed to convert electrical impulses into mechanical movement to lock/unlock doors automatically. The WL801 emphasizes universal installation options, providing adjustable mounting and linking to accommodate varied door shapes and locking mechanisms.

Applications

• Aftermarket central locking installations on older vehicles
• Replacement for worn or expensive OEM actuators
• Vehicle modifications and restoration projects (alarm and remote keyless entry integration)
• Commercial vehicles, vans, trucks and fleet vehicles requiring reliable door operation
• Off-road, taxi and ride-share vehicles where frequent door operation and resistance to adverse conditions are needed

Advantages

• Works with many different vehicles due to flexible mounting
• Generally more affordable than OEM actuators
• Simple installation for technicians familiar with wiring
• Good solution for repairs and upgrades
• Compatible with wireless remote control systems

Drawbacks

• May require some modification or additional mounting hardware for specific doors
• Less precise than some OEM actuators designed for a specific model
• Quality varies between manufacturers; lower-quality parts may wear faster
• Installation can be challenging for beginners without wiring experience

Troubleshooting and Common Issues

• Actuator not responding (no movement)
  • Possible reasons: no power, wiring fault, burnt-out motor
  • Solutions: check fuse and power source voltage; inspect wiring for damage/corrosion; replace actuator if motor is dead
• Weak or partial movement
  • Possible reasons: low voltage, latch resistance, worn internal gears
  • Solutions: verify voltage (should be correct for the unit); lubricate latch and linkage; replace actuator if worn
• Noise but no action
  • Possible reasons: rod misalignment, broken internal plastic gears
  • Solutions: correct mounting bracket alignment; disassemble/replace actuator if necessary
• Only one door not operating
  • Possible reasons: defective actuator for that door, wiring fault to that door
  • Solutions: swap actuators to isolate defective unit; trace wiring from control module to door
• Some doors aren’t locking/unlocking
  • Possible reasons: central locking control module failure, blown fuse/relay, remote key issue
  • Solutions: check relays and fuses; inspect control module; reprogram/replace remote key if required
• Intermittent locking/unlocking
  • Possible reasons: loose wiring, moisture ingress, motor overheating
  • Solutions: secure electrical connections; seal door interior against moisture; replace actuator if overheating continues
• Diagnostic tips
  • Check voltage and continuity with a multimeter
  • Listen for clicking sounds during lock/unlock
  • Verify a solid ground connection
  • Ensure proper mounting and alignment of the actuator

Technical DataSheet
Brand: Weilong Technology
Model Number: WL801
Rated Voltage (V): DC 12V or 24V
Rated Power (W): 20 W
Work Mode: Motor type
RoHS: Compliance
Stroke (mm): 21 MM
Reset Time (s): 1 S on 3 S off
Service Life: 60 Thousand Times
Certification: CE, ROHS, ISO9001
Material: ABS Housing
Lead Wire Length (mm): 200
Install Style: mounted screw hole for easy setup
Tolerance of Dimension: +/- 0.1 MM
Pushing Force: 60 N
Insulation Class: H 180 Degree
Hi-Pot Test: AC 600V 50/60Hz 1s
Non-excitation Holding Force: 0
Working Temperature: -10°C - 100°C
Duty Cycle: 1-100%
Thread Depth (mm): /
Sample Order: Yes
Warranty: 1 Year
MOQ: 1000 pcs
Supply Ability: 5000 pcs per Week
Delivery Time: 30 Days
Port of Loading: shenzhen

Caractéristiques / spécifications techniques

• Brand: Weilong Technology
• Model: WL801
• Rated Voltage: DC 12V or 24V
• Rated Power: 20 W
• Stroke: 21 mm
• Pushing Force: 60 N
• Service Life: ~60,000 cycles
• Material: ABS housing
• Lead Wire Length: 200 mm
• Operating Temperature Range: -10°C to 100°C
• Insulation Class: H (180°)
• Certifications: CE, RoHS, ISO9001
• Reset Time / Duty: 1 s on / 3 s off; duty cycle 1-100%
• Warranty: 1 year
