Direct-operated solenoid valve WL0521

2-wayfor watercompact

Product Overview

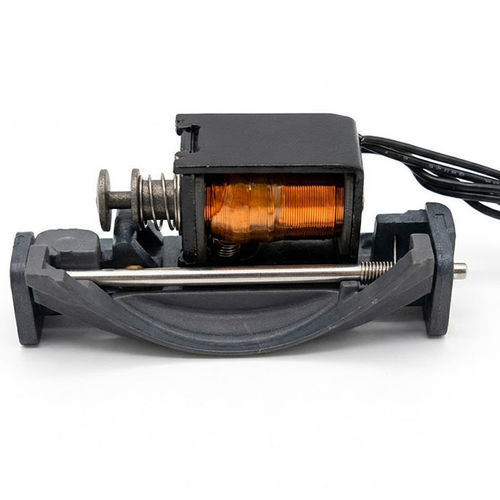

The Weilong WL0521 car headlamp solenoid valve is a compact electromagnetic actuator designed for projector-type automotive headlamps. It enables fast, precise switching between high beam and low beam by controlling the shutter mechanism. Constructed with a copper coil, iron core components and a carbon steel housing with high-temperature materials, it is engineered for the automotive environment and easy integration with bi-xenon and LED projector systems.

Key Features

• Fast electromagnetic response for rapid high-beam/low-beam switching.
• Compact, lightweight design for straightforward integration into projector assemblies.
• Low power consumption to minimize vehicle electrical load.
• Customizable stroke length and mounting options for varied projector designs.
• Compatible with HID (Xenon), halogen and LED projector headlamps.

Operation and Reliability
The solenoid generates a magnetic field that moves the plunger to operate the shutter/cutoff plate; a return spring repositions the mechanism when de-energized. The WL0521 is designed to withstand temperature fluctuations, vibration and frequent switching cycles, providing consistent beam alignment and extended operational life for automotive lighting systems.

Technical Specifications

• Brand: Weilong
• Model Number: WL0521
• Rated Voltage (V): DC 12 V
• Rated Power (W): 5-10 W
• Stroke (mm): Customized
• Reset Time: 1 s
• Service Life: 200,000 cycles
• Certification: CE, ROHS, ISO9001
• Material: Carbon Steel Housing
• Lead Wire Length (mm): 200
• Install Style: mounted screw hole for easy setup
• Tolerance of Dimension: +/- 0.1 mm
• Suction Force: 1000 GF
• Insulation Class: H (180 Degree)
• Hi-Pot Test: AC 600V 50/60Hz, 1 s
• Non-excitation Holding Force: 0
• Working Temperature: -10°C to 100°C
• Duty Cycle: 1-100%
• Thread Depth (mm): /
• Payment Term: TT, or LC at sight
• Sample Order: Yes
• Warranty: 1 Year
• MOQ: 1000 pcs
• Supply Ability: 5000 pcs per week
• Delivery Time: 30 Days
• Port of Loading: Shenzhen
